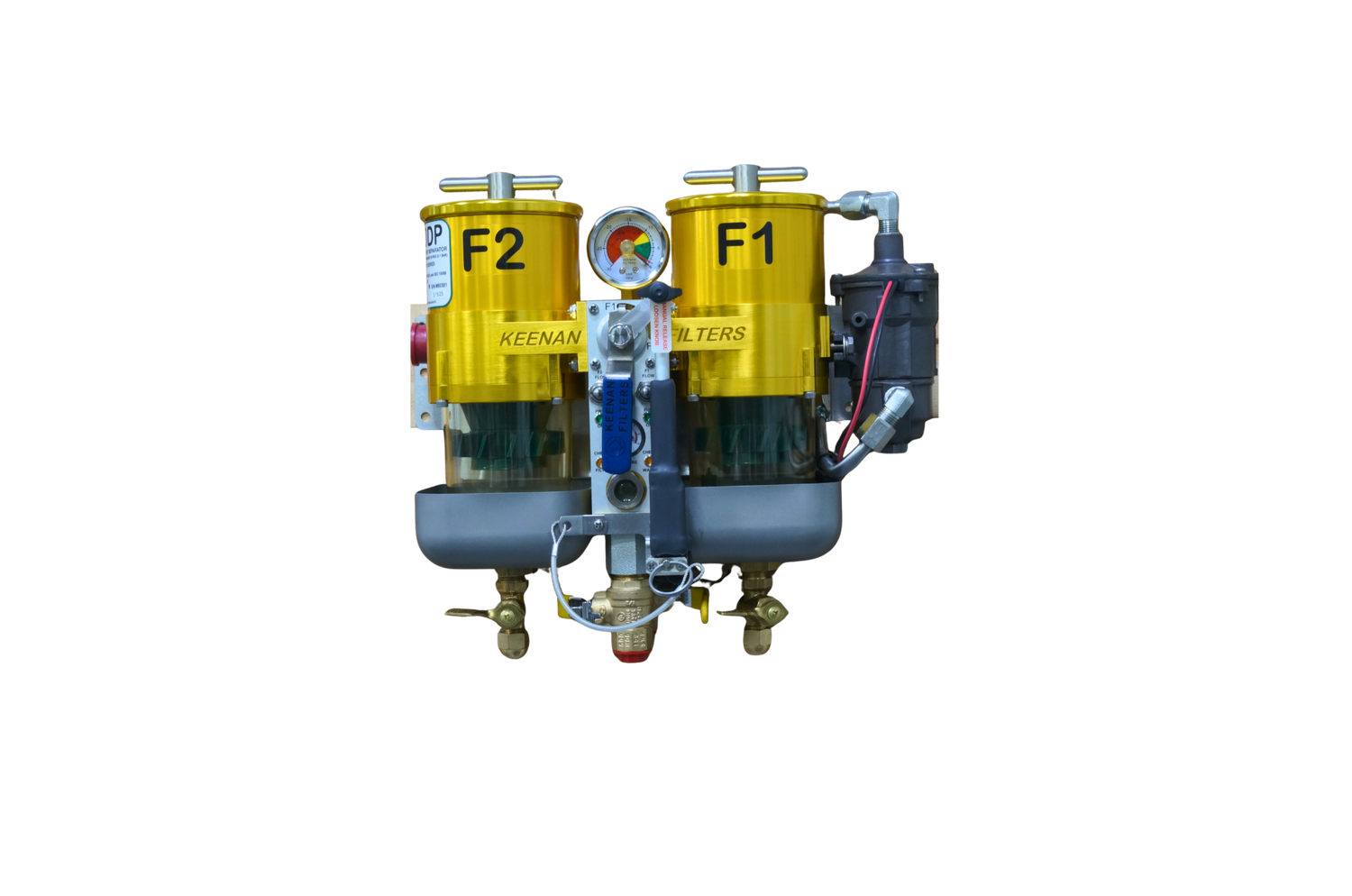

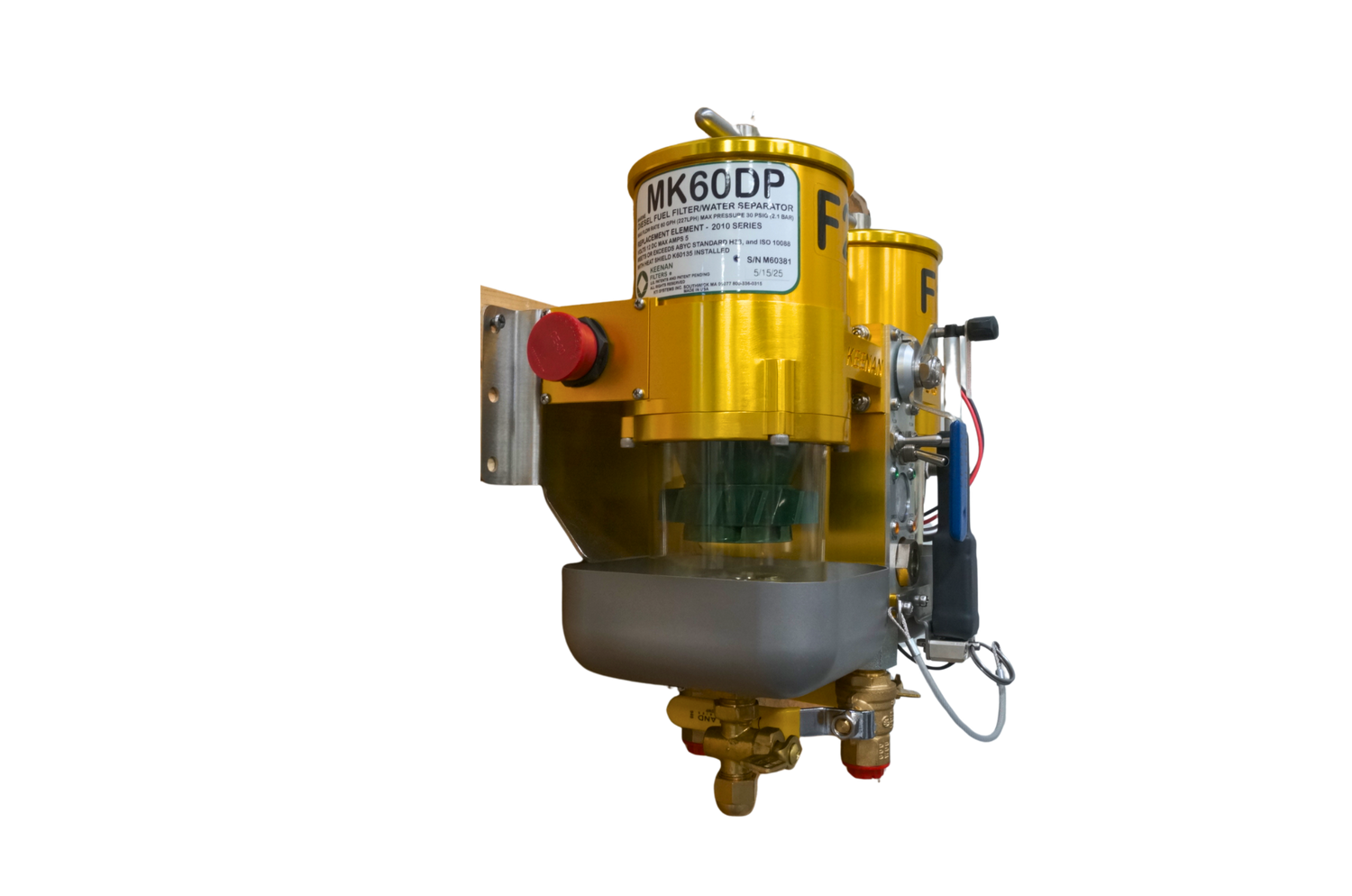

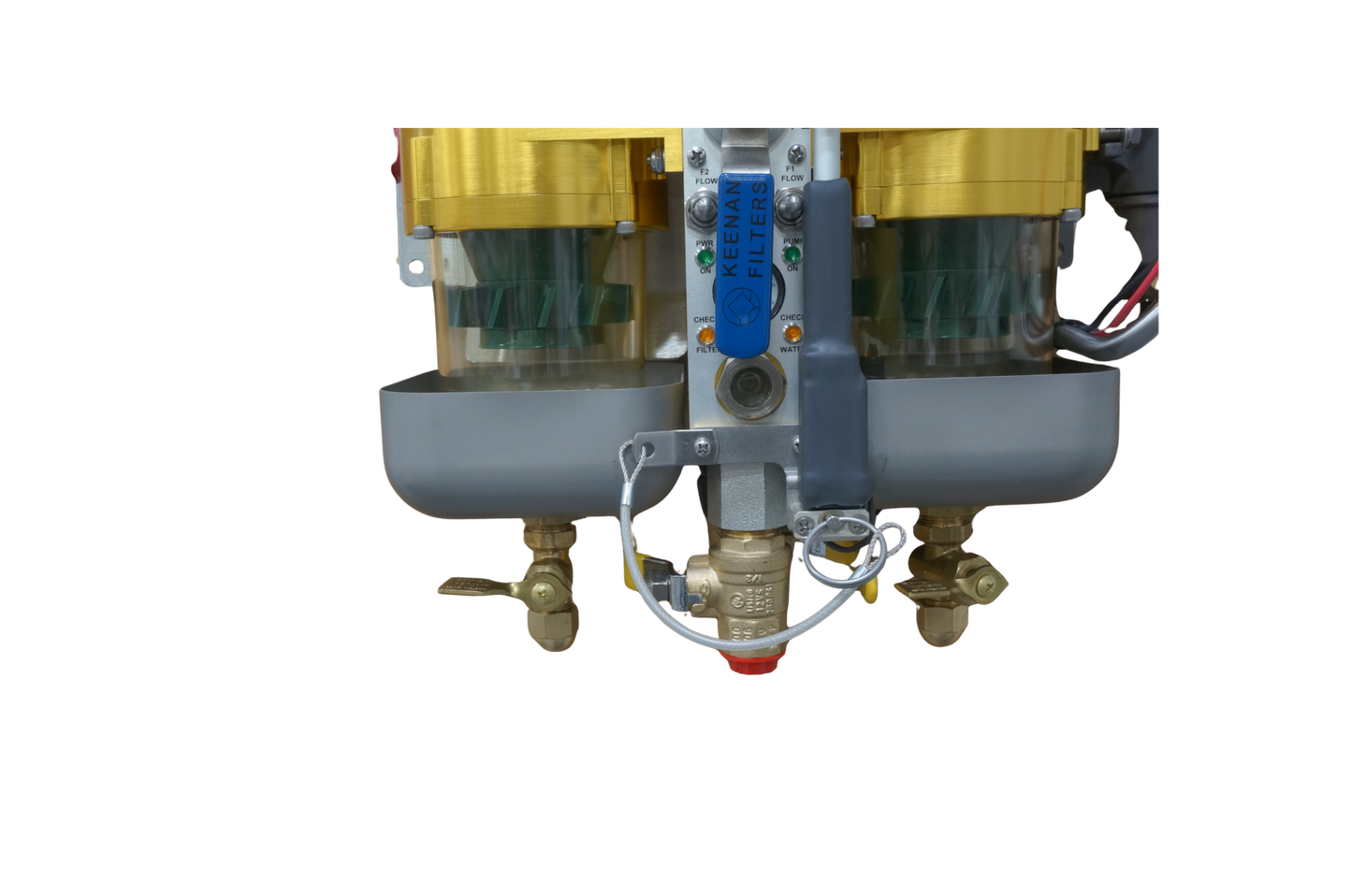

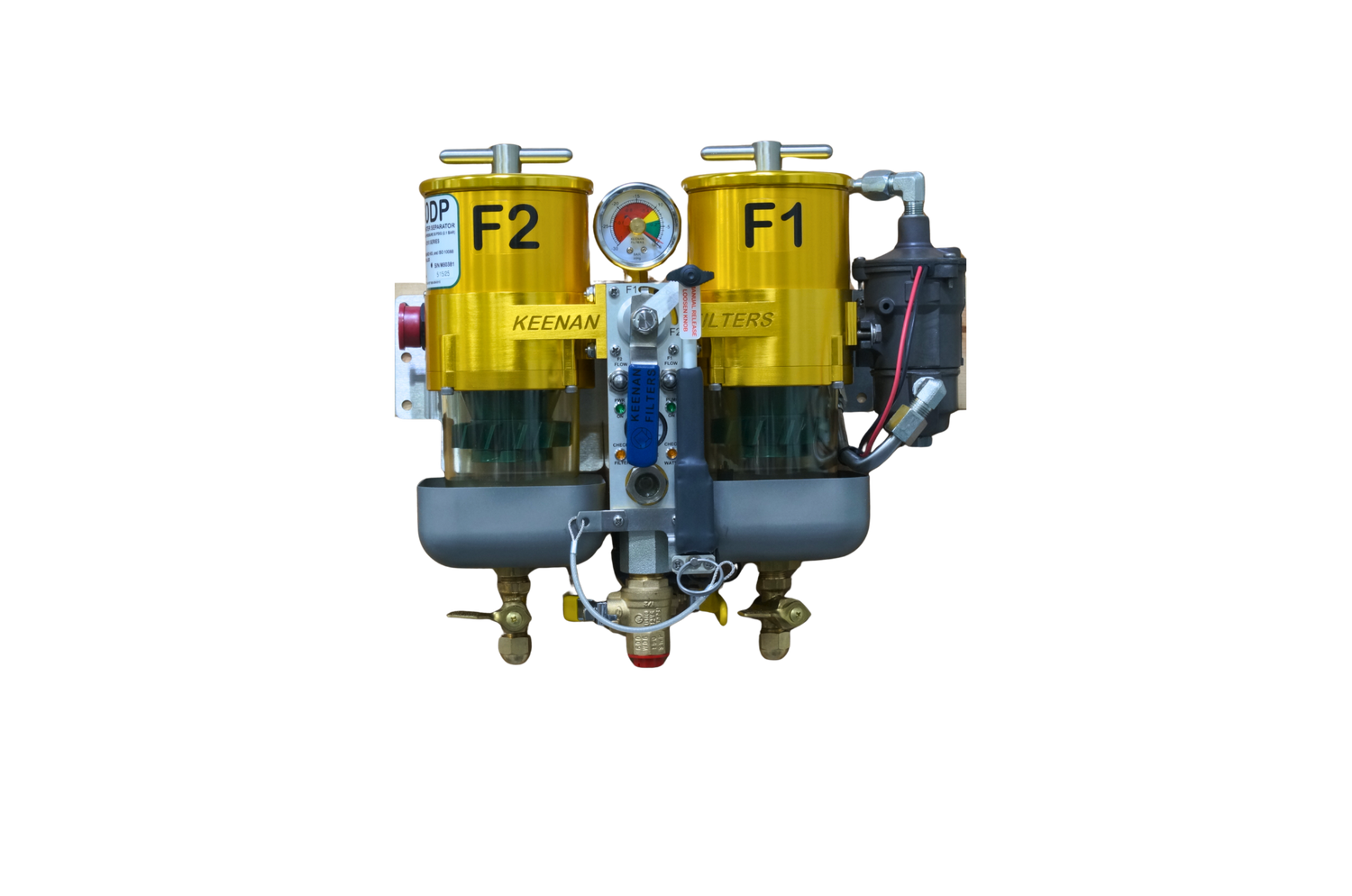

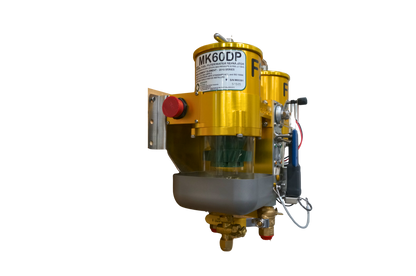

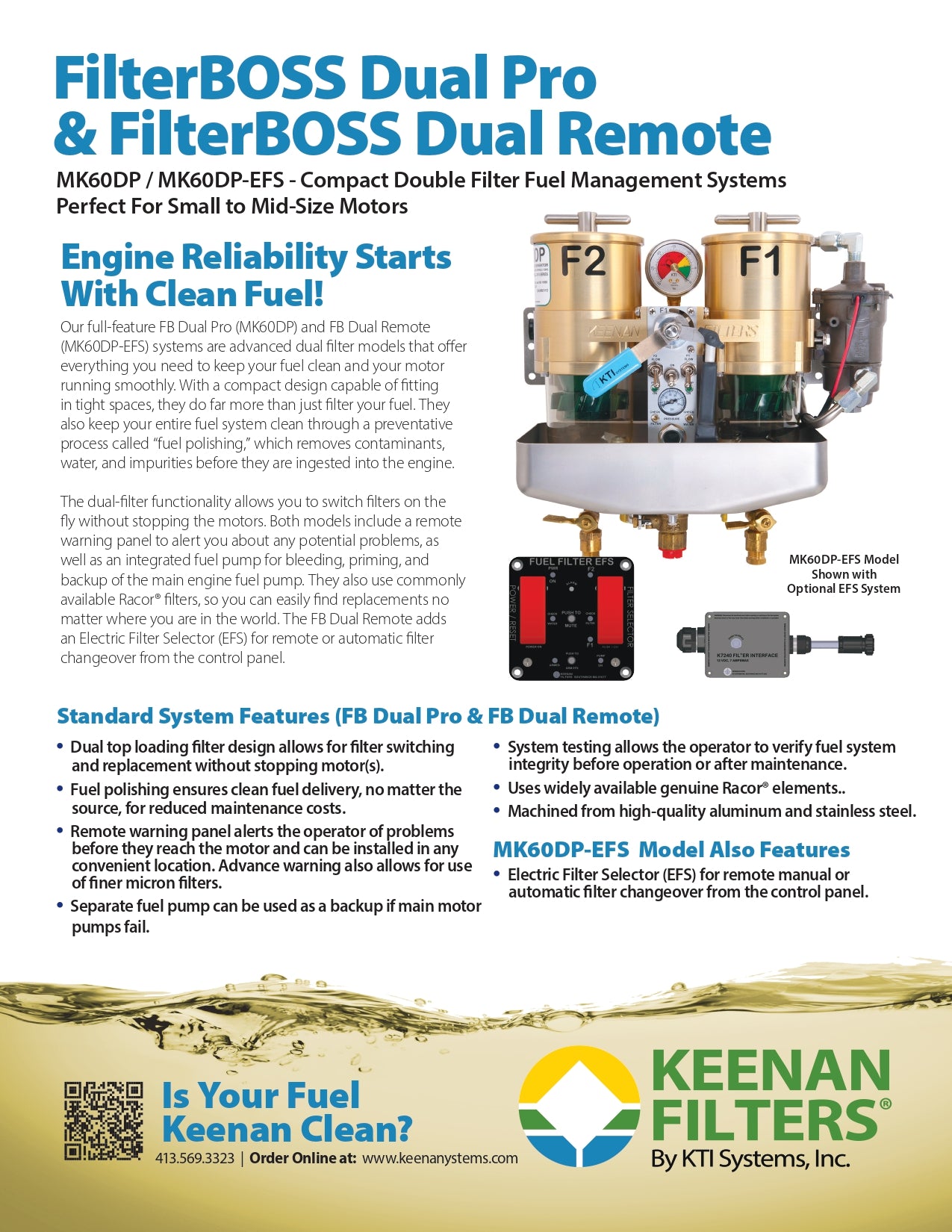

MK60DP-EFS Dual Filter Fuel Management System with Automatic Switching
The Complete Diesel Protection System – Made in the USA

Most diesel engine failures begin in the fuel tank. When contaminants and water accumulate in stored fuel, filters become overwhelmed at the worst possible moment—just when you need the engine most. The MK60DP-EFS is engineered to solve that problem by delivering continuous, clean fuel and protecting your engine from shutdown.

With dual filters, integrated polishing, and an Electric Filter Switch (EFS), the system can automatically switch filters if one becomes clogged or water is detected—without stopping your engine. The remote warning panel alerts you early, giving you time to respond before problems affect performance.

The MK60DP-EFS allows you to polish fuel before, during, or after fueling, test system integrity, and back up your engine’s lift pump. Designed using proven FilterBoss technology and built from high-grade aluminum and stainless steel, it’s a compact, powerful, and intelligent system trusted by professionals.

Ideal for marine and commercial diesel systems where uninterrupted operation, early warning, and clean fuel are mission critical.

GPH (60)
EFS
Command Panel
Pump
Mounting Panel
Single Switch
Dual Switch
Remote Control

Key Features

Key Features

Dual filter system with seamless switch-over for uninterrupted operation
Automatic or manual filter switching via Electric Filter Switch (EFS)
Fuel polishing during storage, fueling, or operation
Remote warning panel alerts operator to water or clogging before engine performance is impacted
System test mode allows operator to verify integrity after service or before operation
Early clogging and water detection protect against the most common shutdown causes
Integrated backup fuel pressure supports faster system priming and redundancy
Top-loading design for quick, clean filter changes
Compatible with standard Racor® filter elements
Optional GSM interface for remote monitoring and control from anywhere
Machined from aluminum and stainless steel for durability in harsh environments

What's Included

Standard Package Includes

MK60DP-EFS Dual Filtration and Polishing Unit
KP600 Remote Warning Panel with Mute and Auto-Arm Controls
K6060 Interface Box with 15 ft Harness

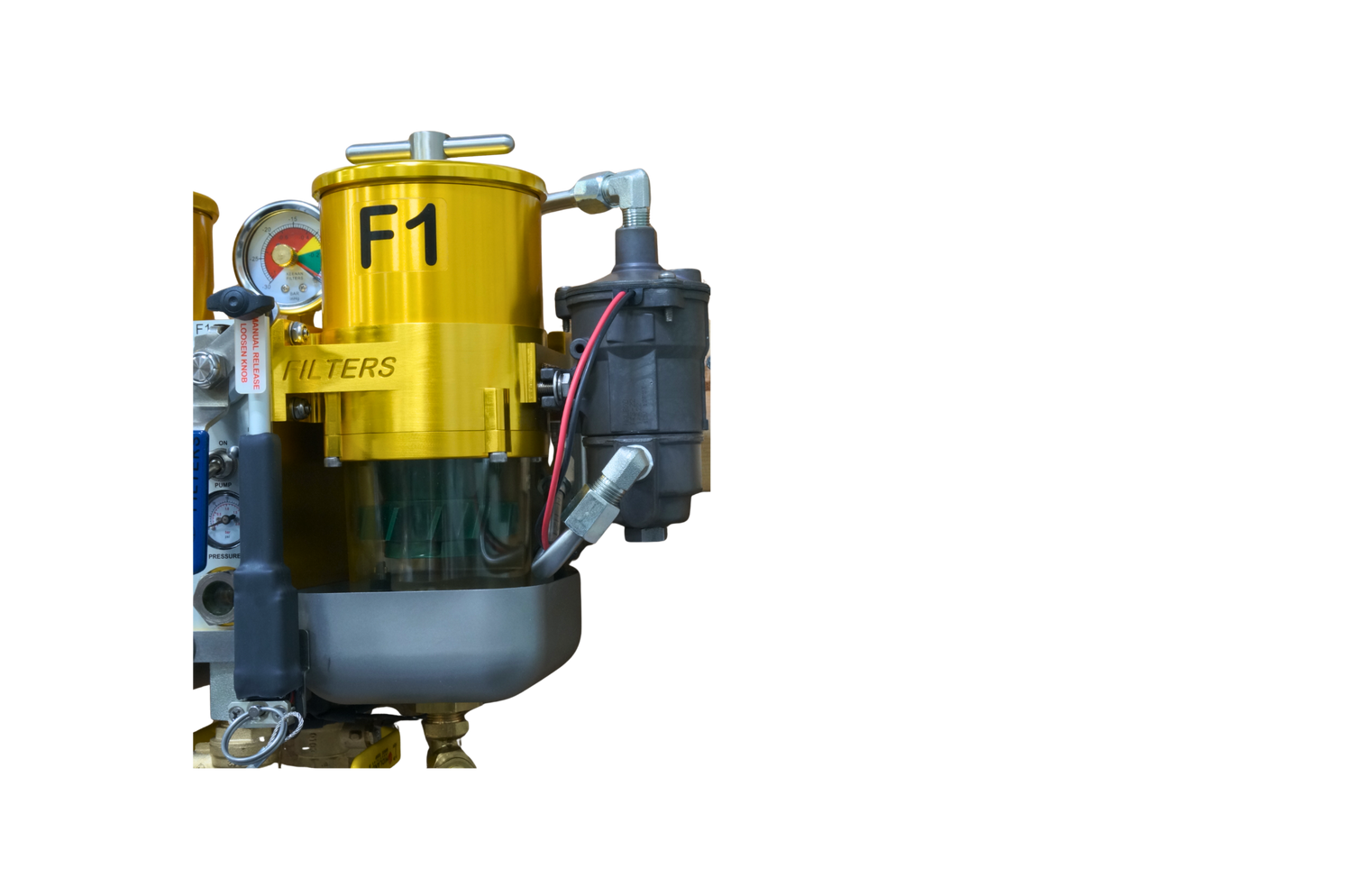

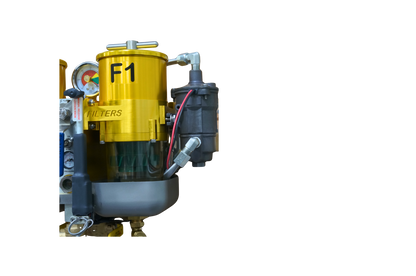

Integrated Walbro FRB13-2 Pump

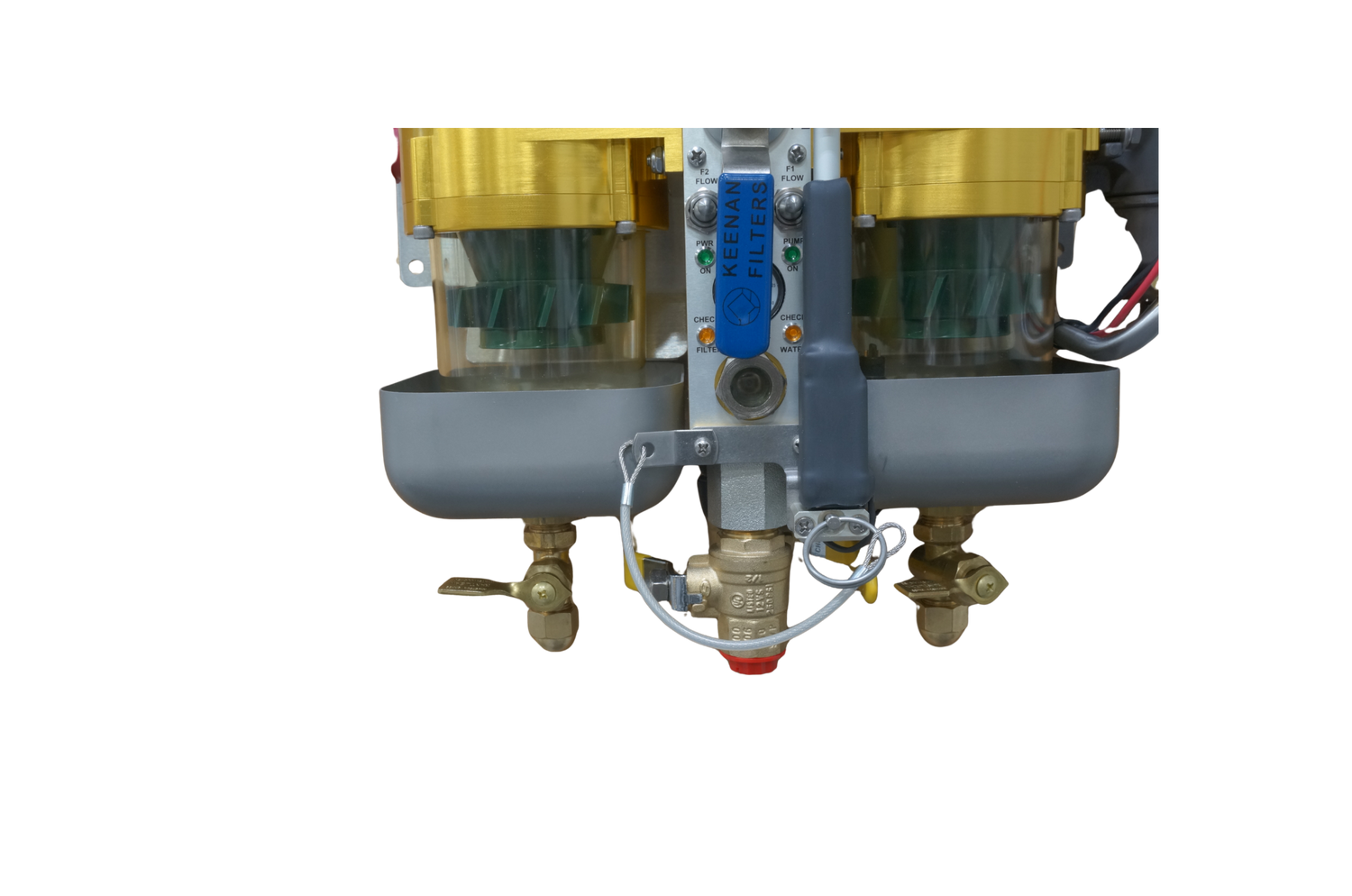

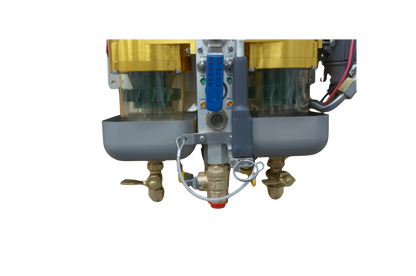

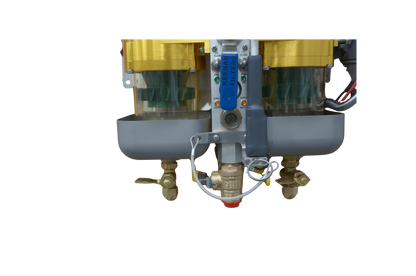

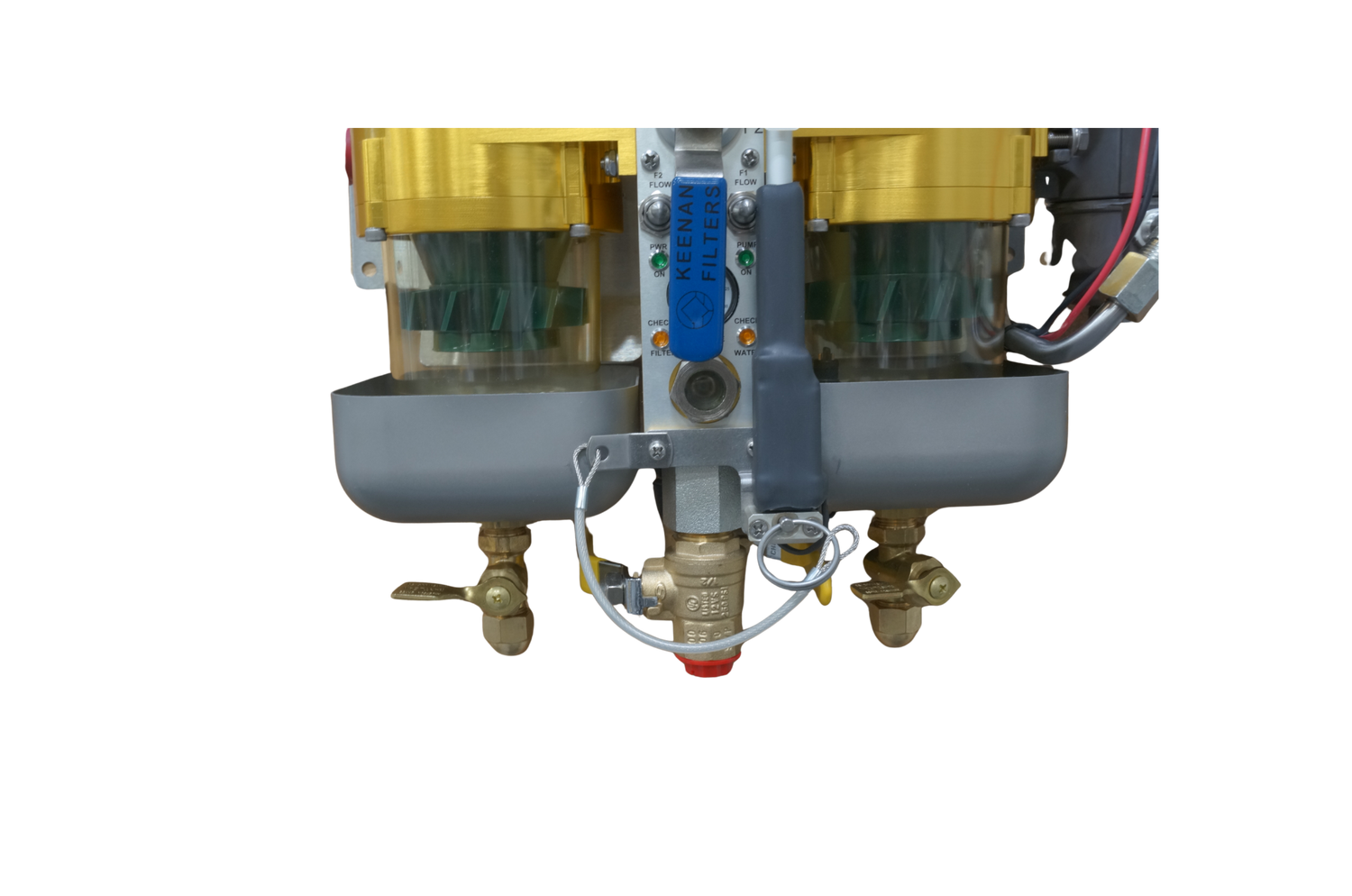

Spill Shield, Inlet Shut-Off Valve, and Mounting Hardware
ORB to NPT Adapters
Drain Valves

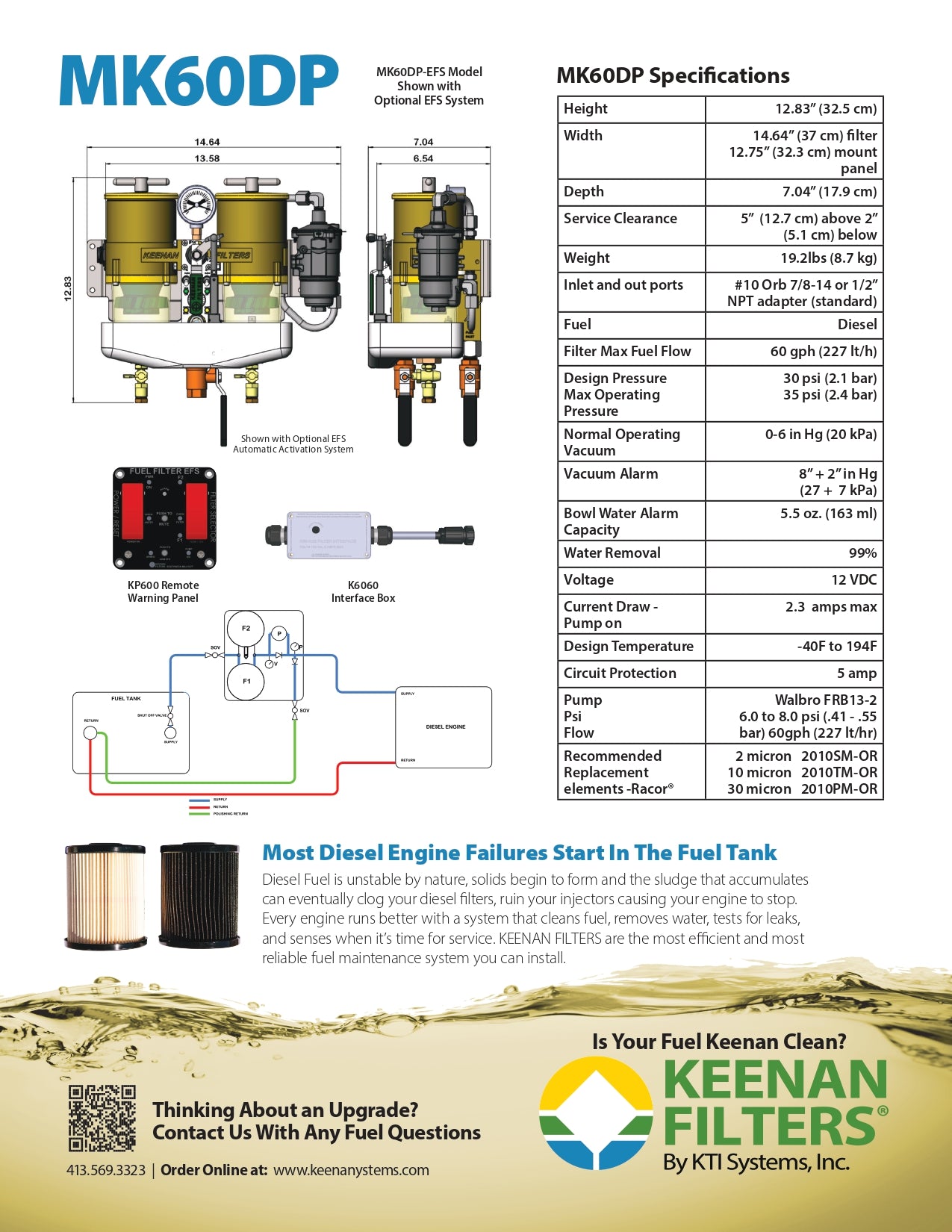

Technical Specifications

Technical Specifications

Fuel Type: Diesel
Flow Rate: 60 GPH
Voltage: 12 VDC
Current Draw (Pump): 2.3 amps max
Circuit Protection: 5 amp

Pump Output:

  • Pressure: 6.0 to 8.0 psi
  • Flow: 60 GPH
    Water Removal: 99 percent
    Operating Pressure: Max 30 psi
    Operating Vacuum: 0 to 6 in Hg
    Vacuum Alarm: 8 in Hg ± 2 in
    Water Alarm Capacity: 5.5 oz
    Weight: 19.2 lbs

Dimensions:

  • Height: 12.83 in
  • Width: 14.64 in (filter), 12.75 in (mount panel)
  • Depth: 7.04 in
    Service Clearance: 5 in above, 2 in below
    Inlet/Outlet Ports: #10 ORB 7/8-14 or 1/2 in NPT adapter

Recommended Filter Elements:

  • 2 micron: Racor® 2010SM-OR
  • 10 micron: Racor® 2010TM-OR
  • 30 micron: Racor® 2010PM-OR
