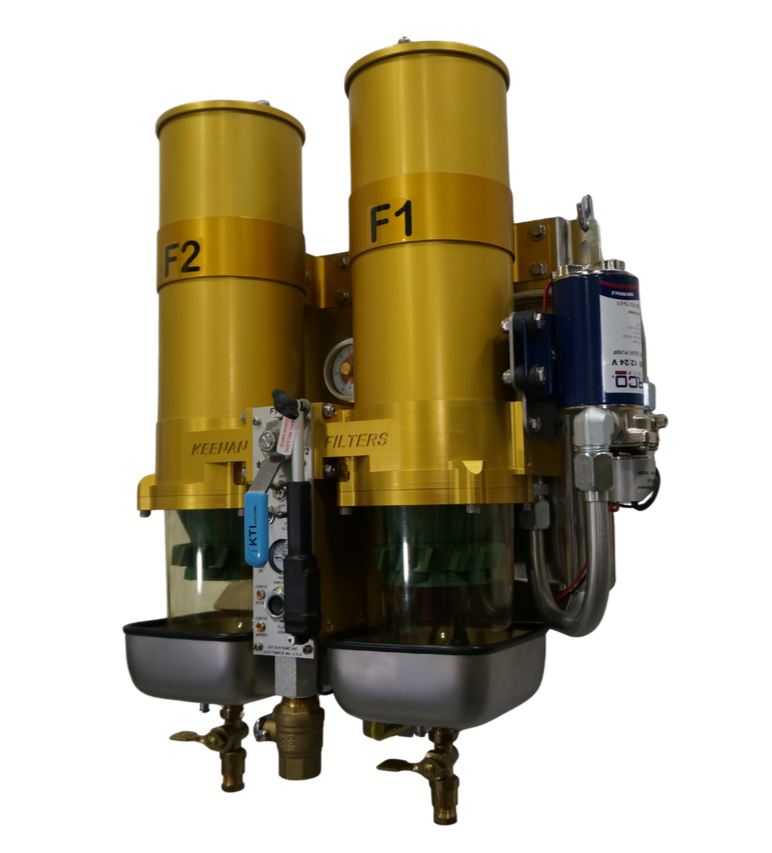

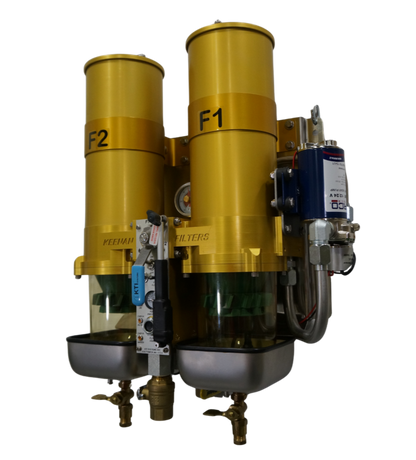

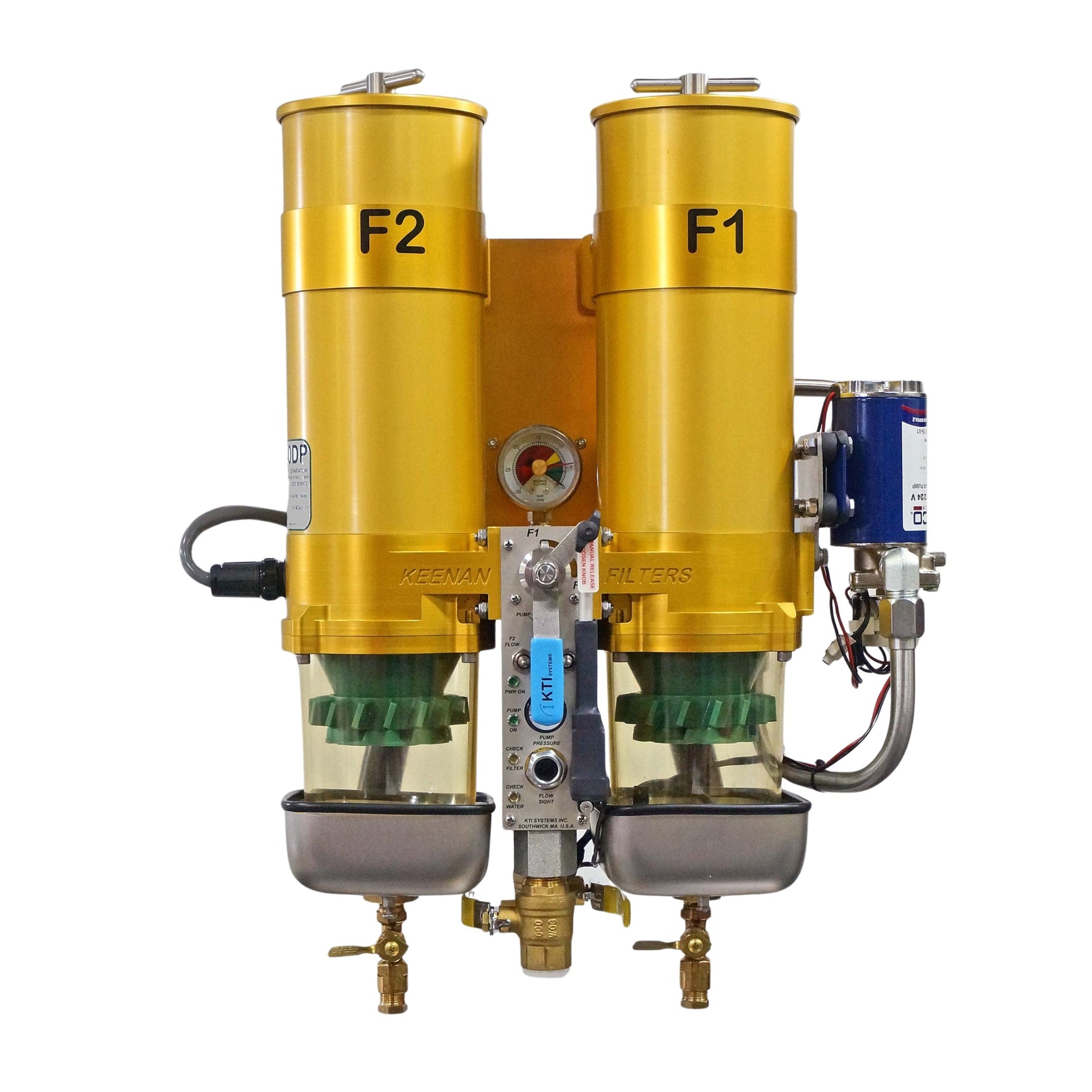

MK240DP-EFS

A Full Feature Double Filter Fuel Management System Perfect For Mid to Large Size Motors

Our MK240DP-EFS system is an advanced double filter model the can clean up to 240 gallons of fuel per hour. Far more than a basic fuel filter, it offers everything you need to keep your fuel clean and motor running smoothly. It’s dual filter functionality also allows you to switch filters on the fly without stopping the motors. It also “polishes” the fuel which removes contaminants, water and impurities before they are ingested into the engine.

The MK240DP-EFS model comes with the KP600 remote warning to alert you of potential problems before engine shut-down, as well as an integrated fuel pump for bleeding, priming, polishing of stored fuel and backup of the main engine fuel pump in an emergency.

• Dual filter design allows for filter switching and replacement without stopping motor(s).

• Fuel polishing ensure clean fuel delivery, no matter the source, for reduced maintenance costs.

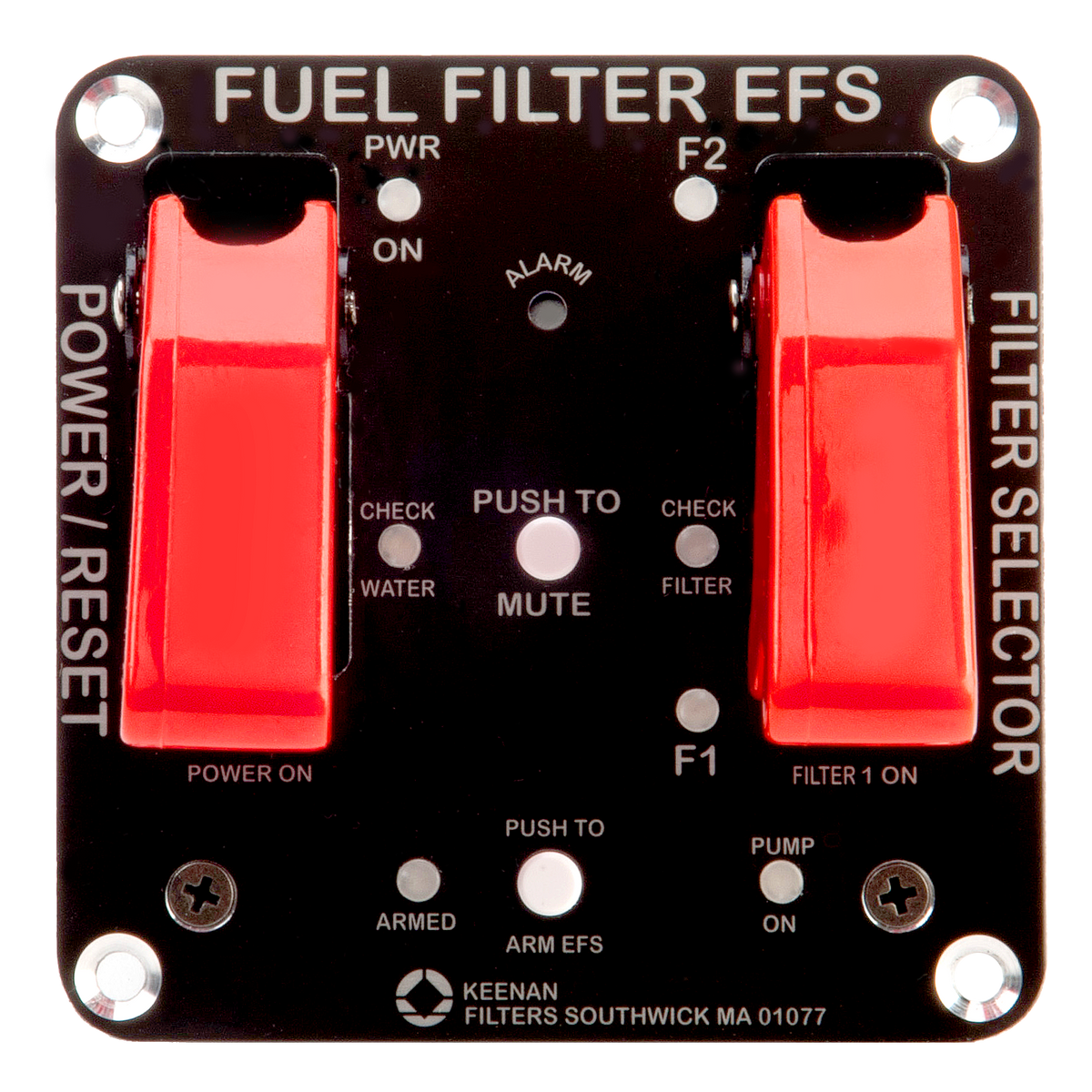

• Remote warning panel alerts operator of problems before they get to the motor and can be installed in any location convenient for the operator. Advance warning also allows for use of finer micron filter.

• EFS system allows for remote manual filter changes   from warning panel

• Integrated fuel pump can be used as back-up if main motor pumps fail.

• System testing allows operator to verify fuel system integrity before operation or after maintenance.

• Uses widely available genuine Racor® elements.

• Machined from high quality aluminum & stainless.

• Can be interfaced with NMEA 2000

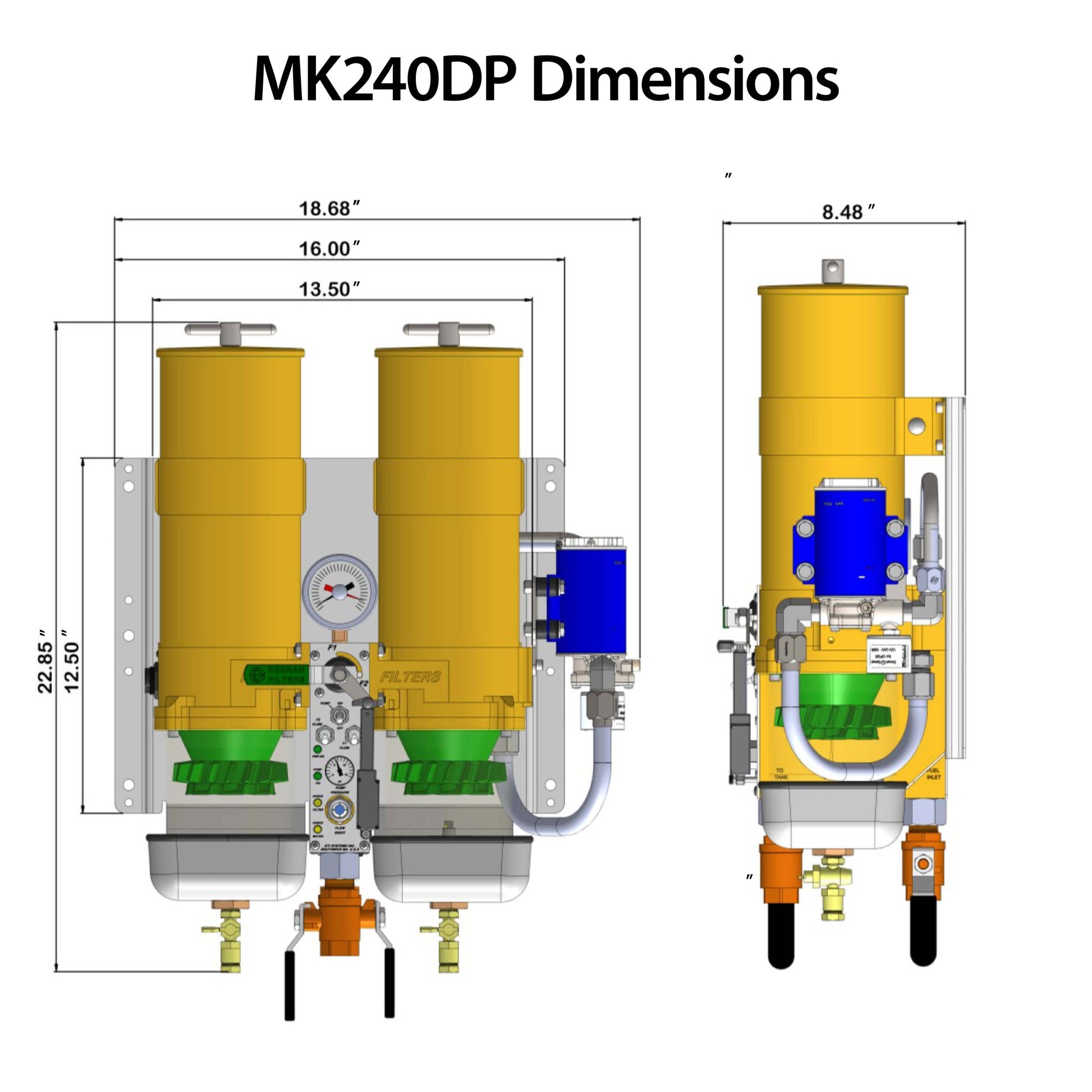

MK240DP-EFS Specifications

View Complete Technical Specifications & Space Requirements >

View MK240DP User Guide and Installation Manual >
