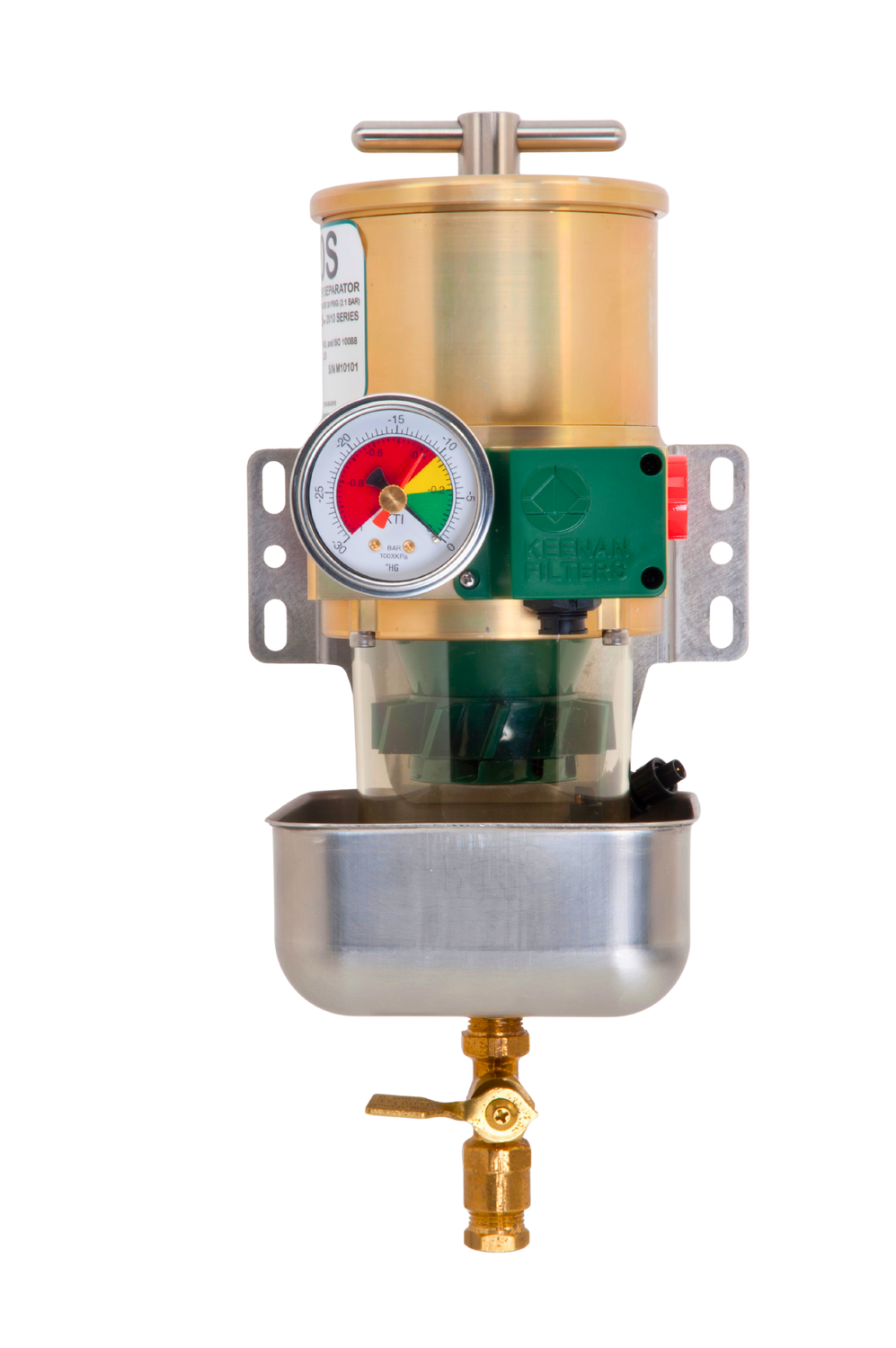

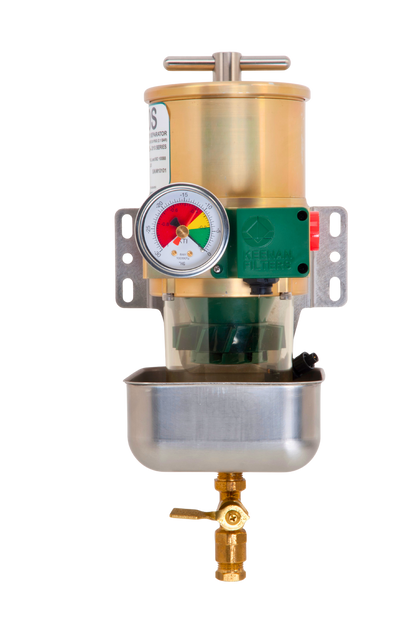

MK60S Single Filter Smart Fuel System
Essential Diesel Filtration with Early Warning Protection – Made in the USA

The MK60S is a rugged, compact fuel filter and water separator built for reliability. Designed for small diesel engines, this system protects against the most common cause of engine failure: fuel contamination.

With the MK60S, you get more than just a filter. You gain a proactive line of defense against water, sludge, and other contaminants that can clog filters, damage injectors, and stop your engine cold. Its remote warning panel alerts you to rising vacuum or water presence before they cause a shutdown, giving you time to act.

The top-loading design, integrated vacuum gauge, and field-serviceable components make it easy to inspect, test, and maintain. Built from high quality aluminum and stainless steel, the MK60S also includes a spill pan and inlet shut-off valve for added safety and servicing ease.

A simple and effective diesel filtration solution with smart diagnostics and early alerts.

GPH (60)
EFS
Command Panel
Pump
Mounting Panel
Single Switch
Dual Switch
Remote Control

Key Features

Key Features

Single filter system with Racor® water separator
Early warning panel alerts operator to clogging or water in fuel
Vacuum gauge for real-time filter status
System test mode to verify functionality before trips or after service
Top-loading design with no-mess service access
Built-in water drain valve and shut-off valve
Spill pan and heat shield for clean, safe operation
Compatible with widely available Racor® filter elements
Ideal for small diesel engines in marine, generator, and vehicle applications

What's Included

Standard Package Includes

MK60S Filtration Unit with Mounting Panel
KP300 Remote Warning Panel with Mute and Reset
KH1010 Interface Box and Wiring Harness
ORB to NPT Adapters
Mounting Hardware and Drain Valve

Technical Specifications

Technical Specifications

Fuel Type: Diesel
Flow Rate: 60 GPH
Water Removal: 99 percent
Voltage: 12 VDC

Current Draw:

  • Standby: 57 mA
  • Warning: 145 mA
    Circuit Protection: 3 amp
    Max Operating Pressure: 30 psi
    Operating Vacuum: 0 to 6 in Hg
    Vacuum Alarm: 8 in Hg ± 2 in
    Bowl Water Alarm Capacity: 5.5 oz
    Weight: 5.4 lbs
    Dimensions: 12.93 in H × 6.35 in W × 6 in D
    Service Clearance: 5 in above, 2 in below
    Inlet/Outlet Ports: 3/4-16 ORB or 1/2 in NPT adapter

Recommended Filter Elements:

  • 2 micron: 2010SM-OR
  • 10 micron: 2010TM-OR
  • 30 micron: 2010PM-OR
