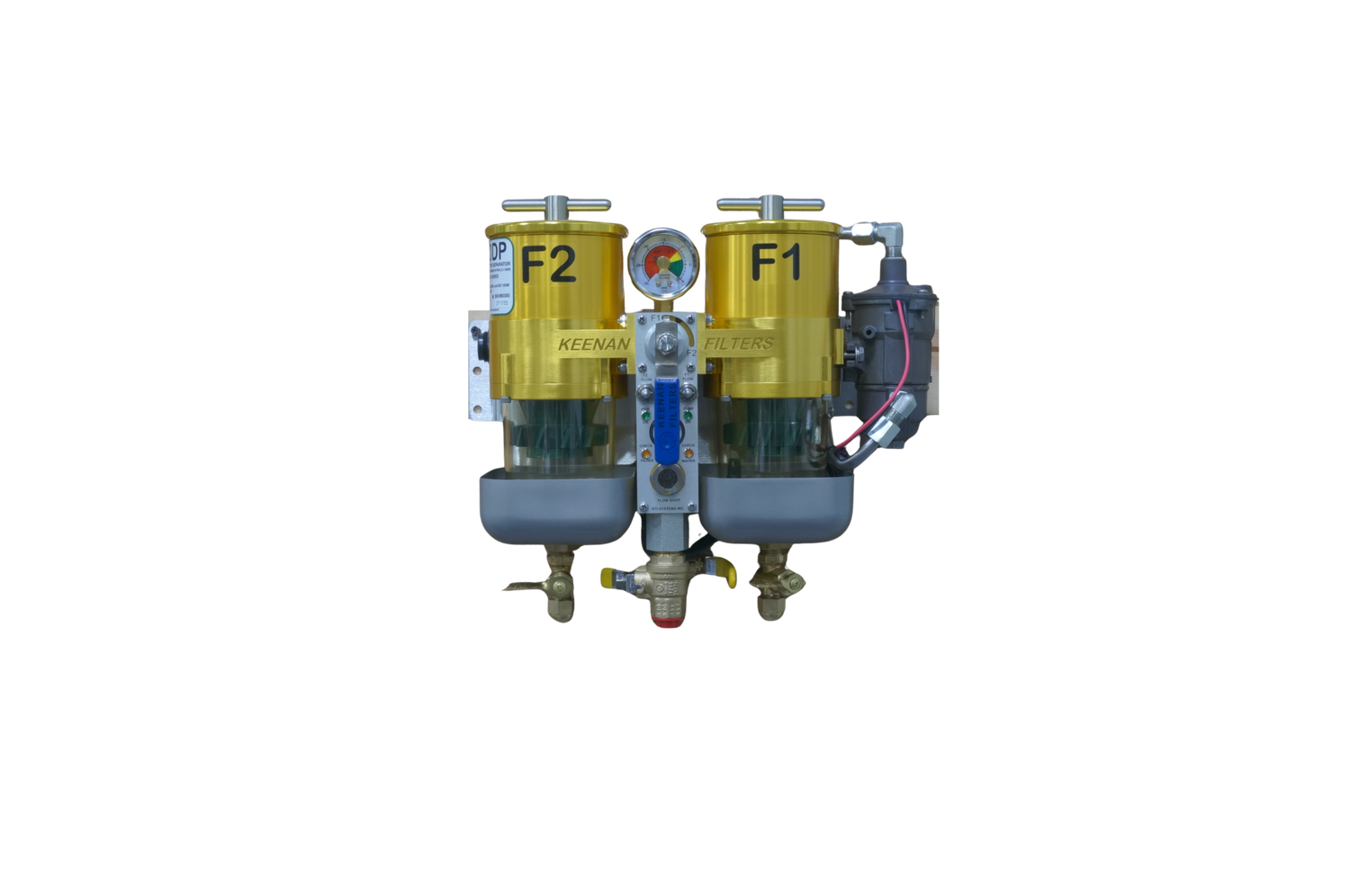

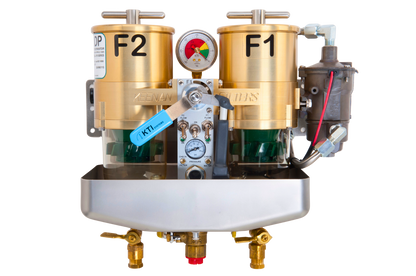

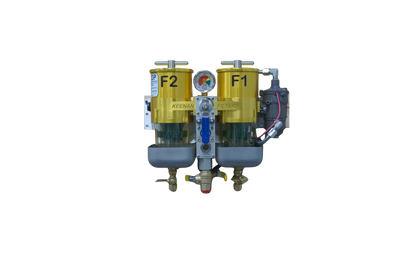

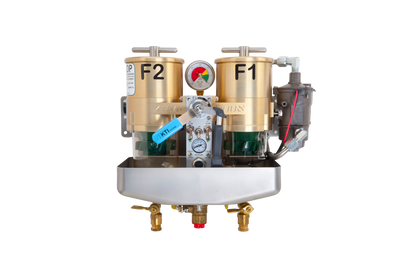

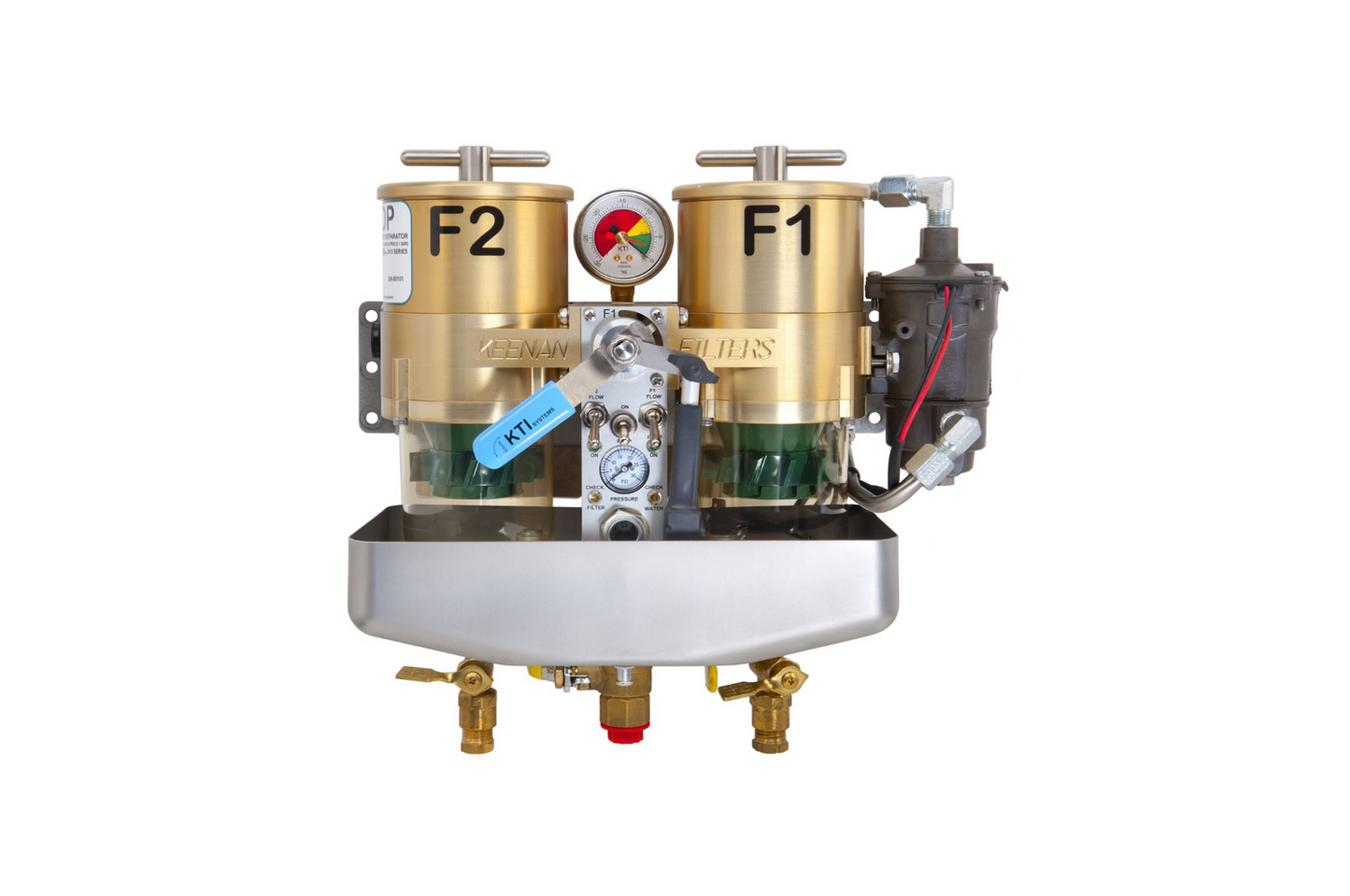

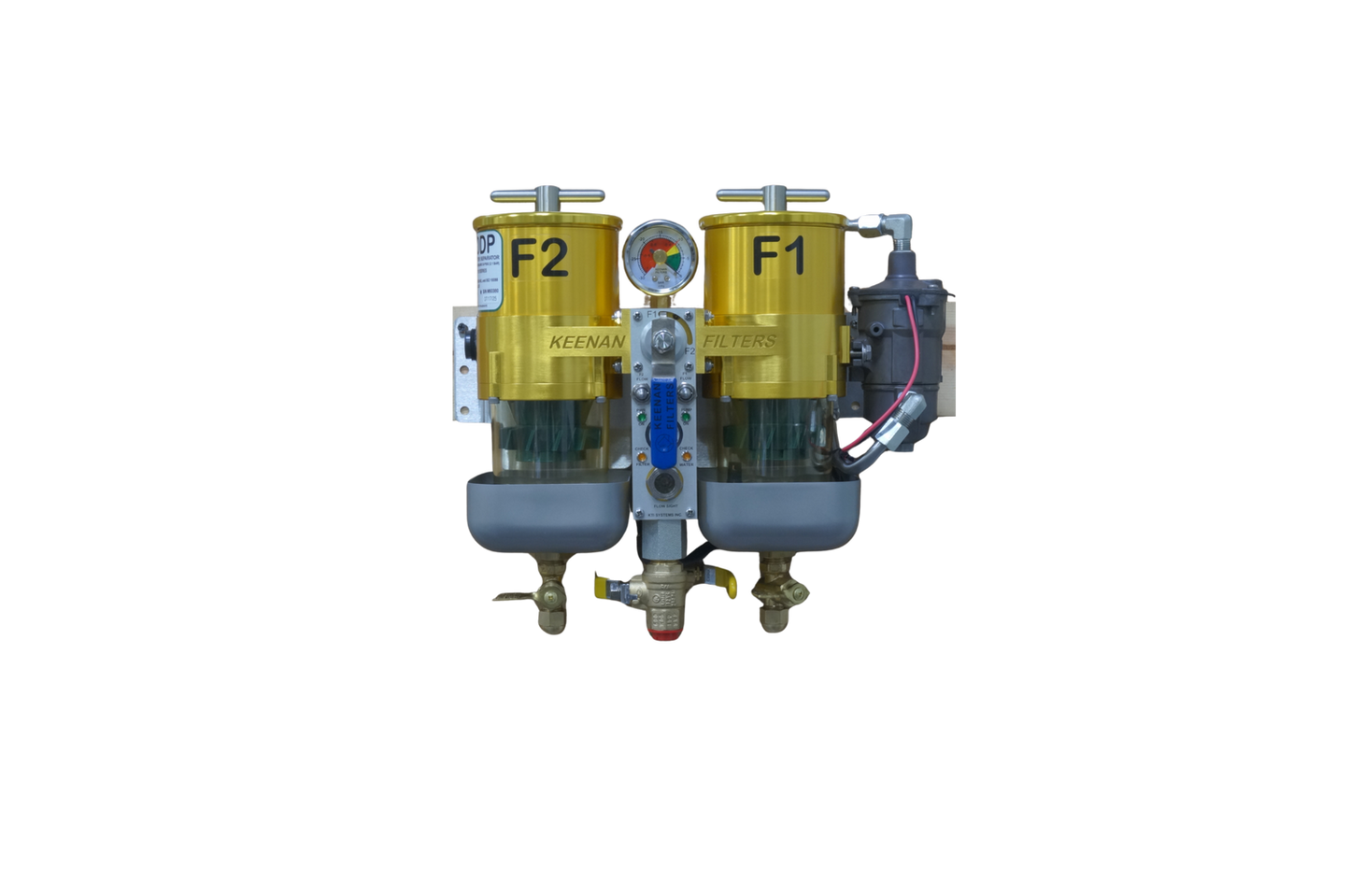

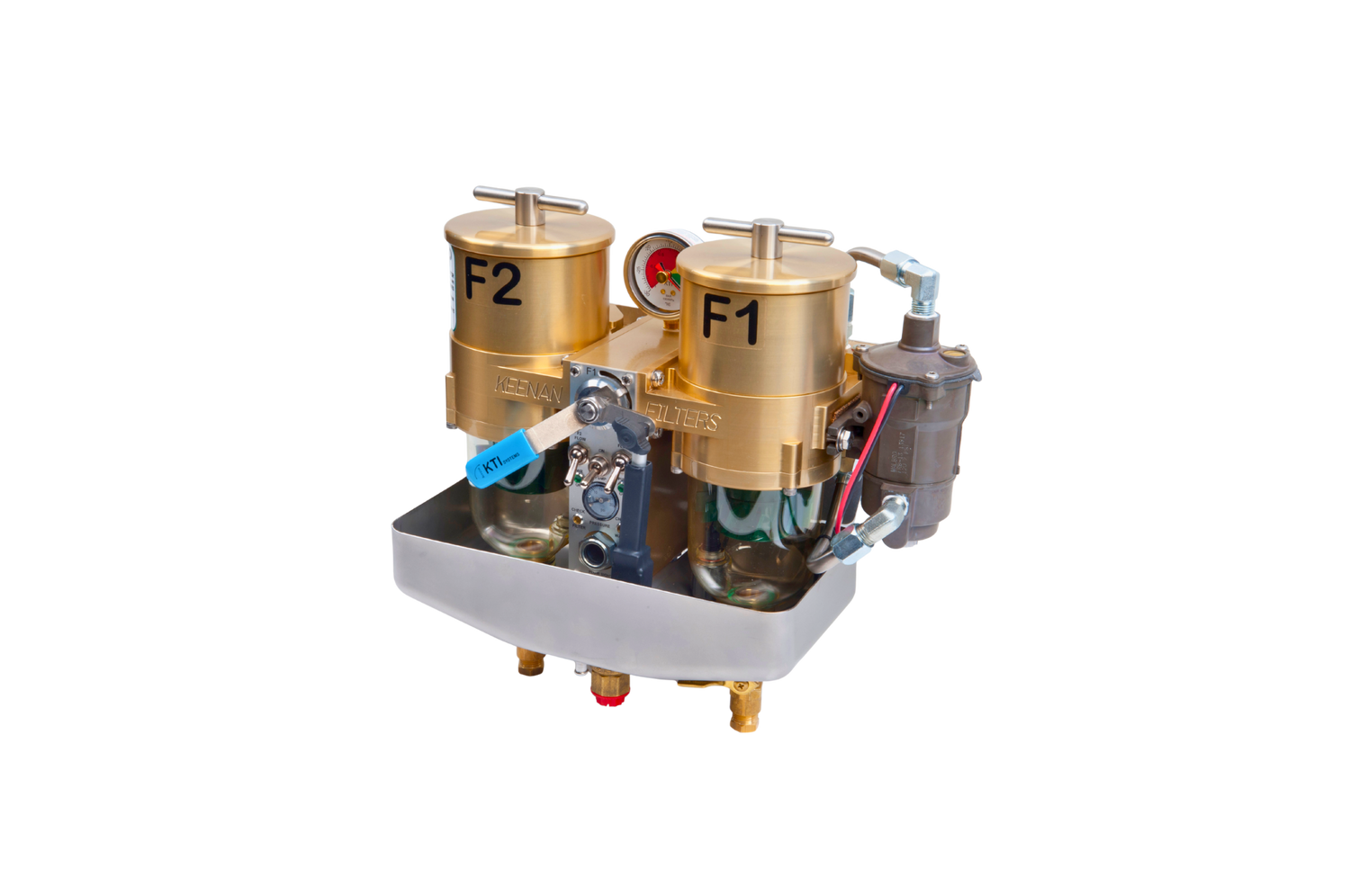

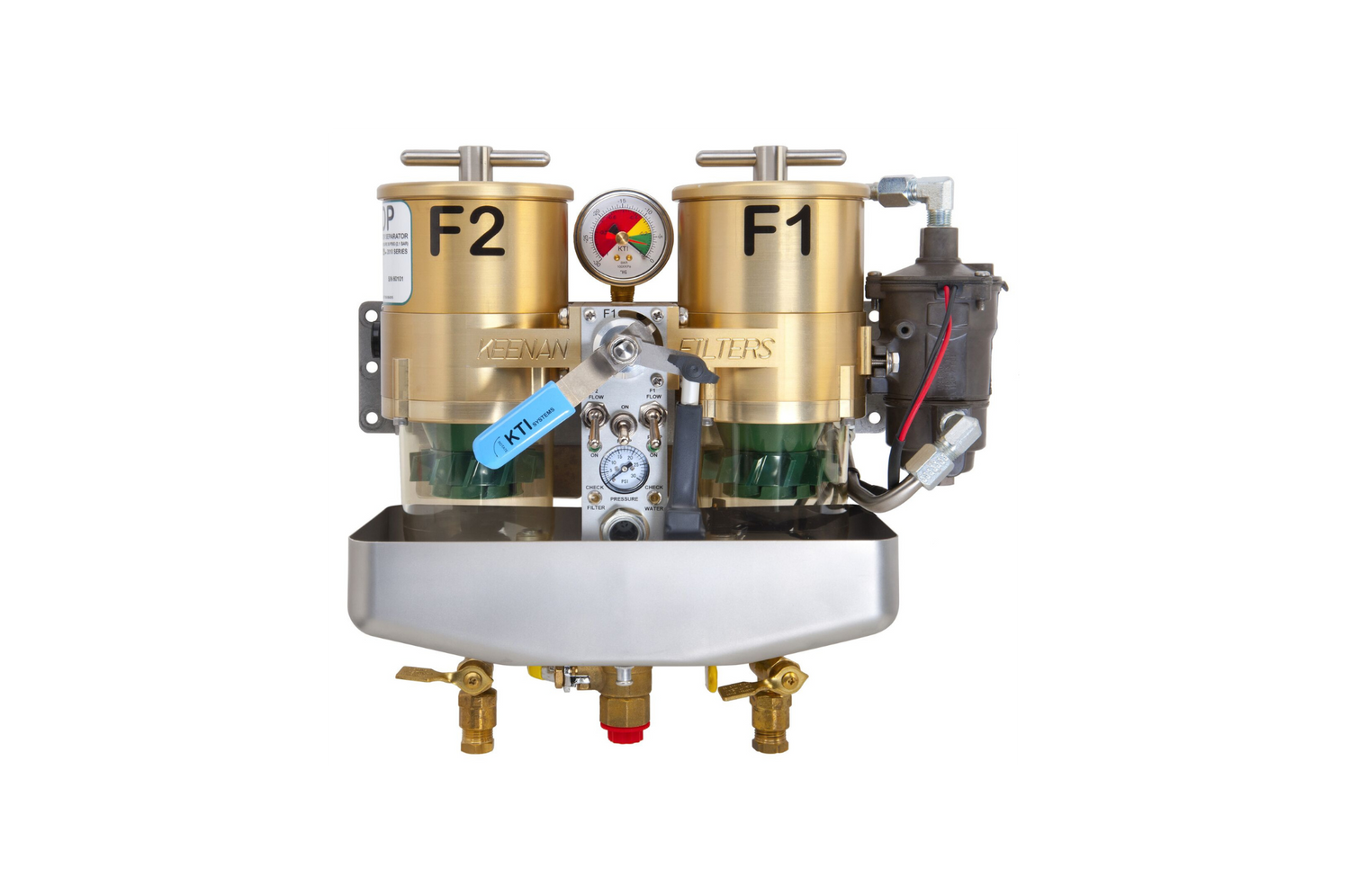

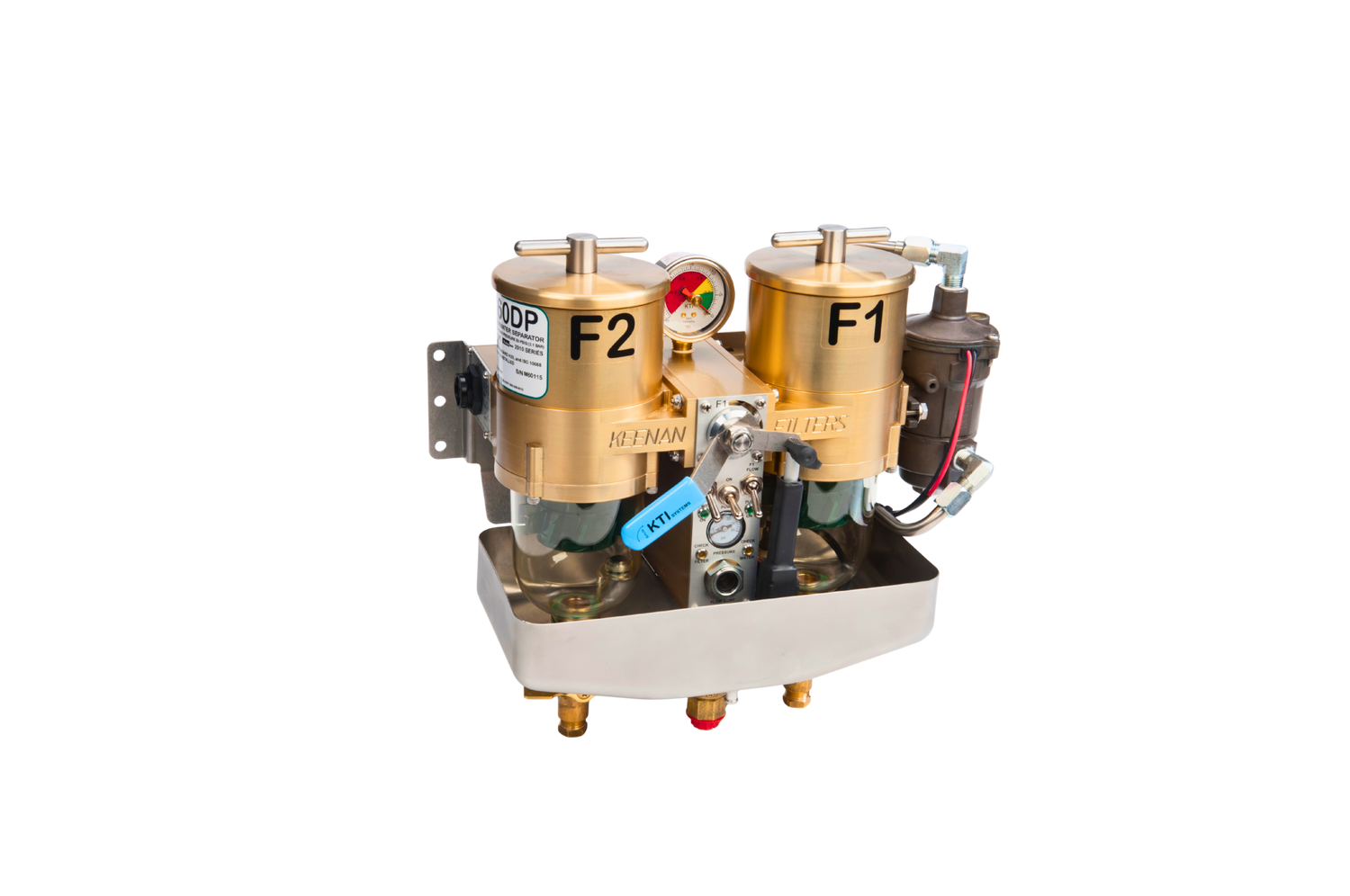

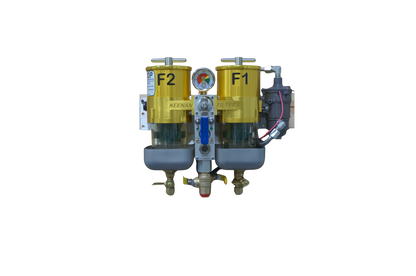

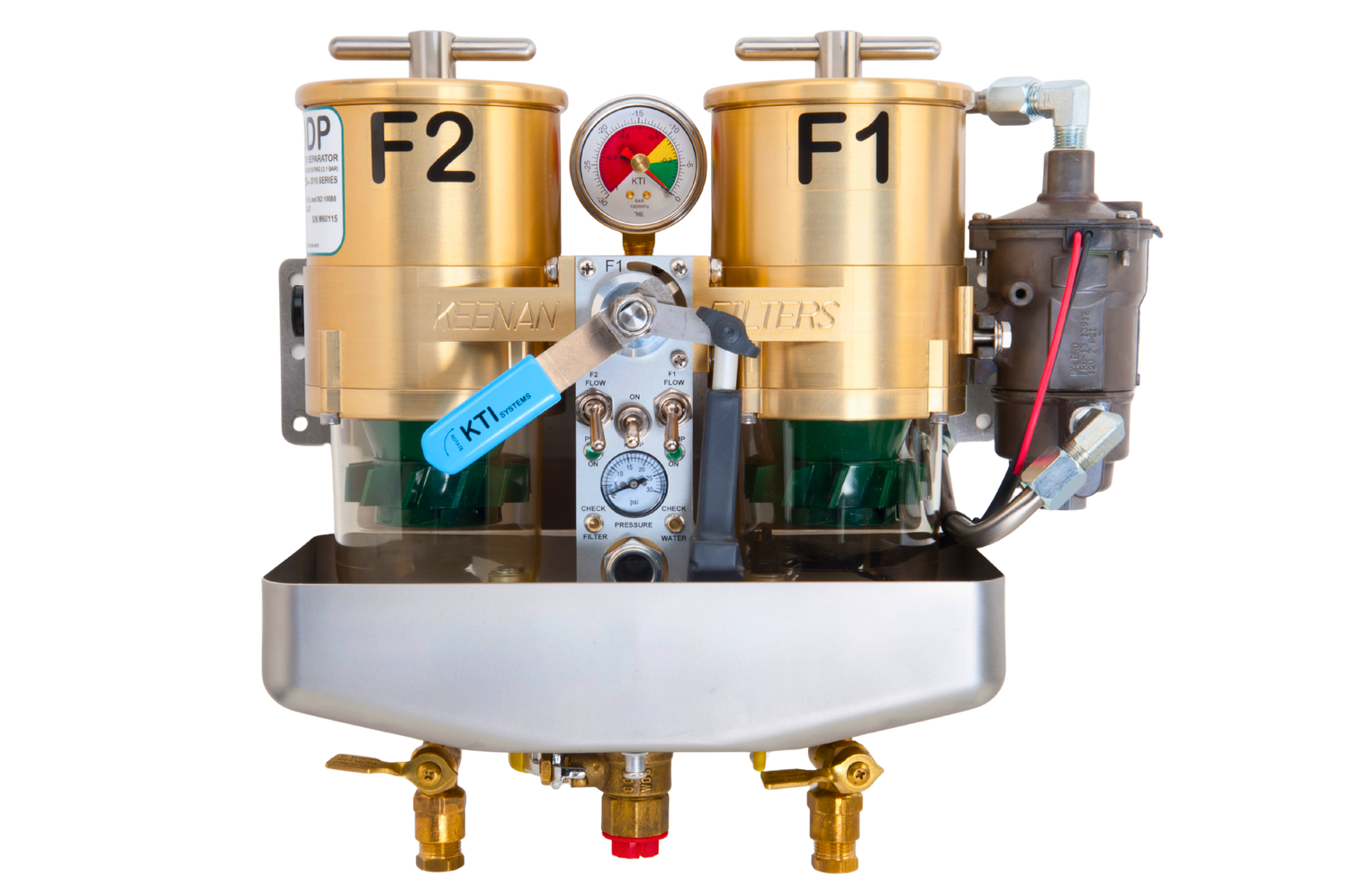

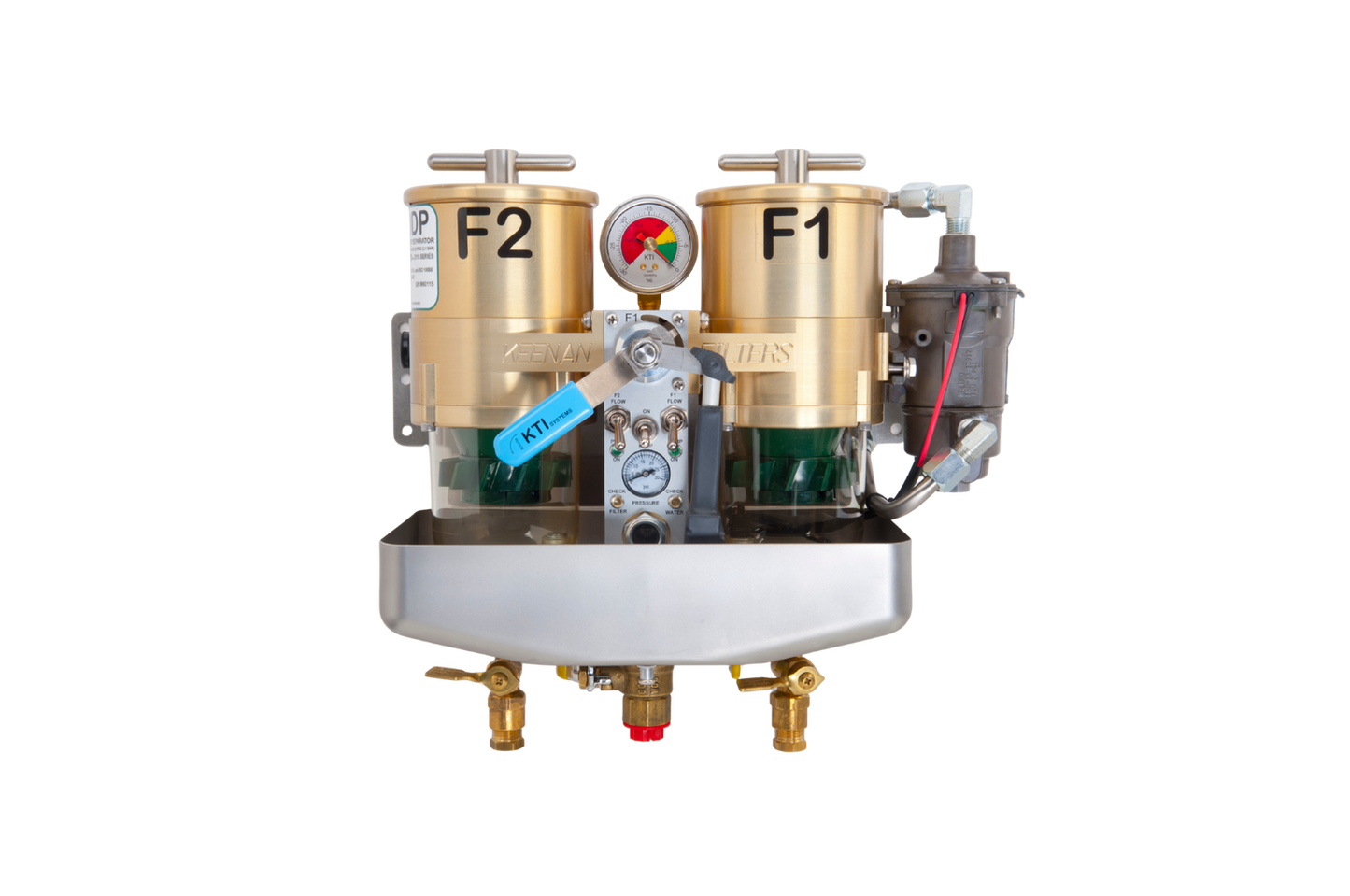

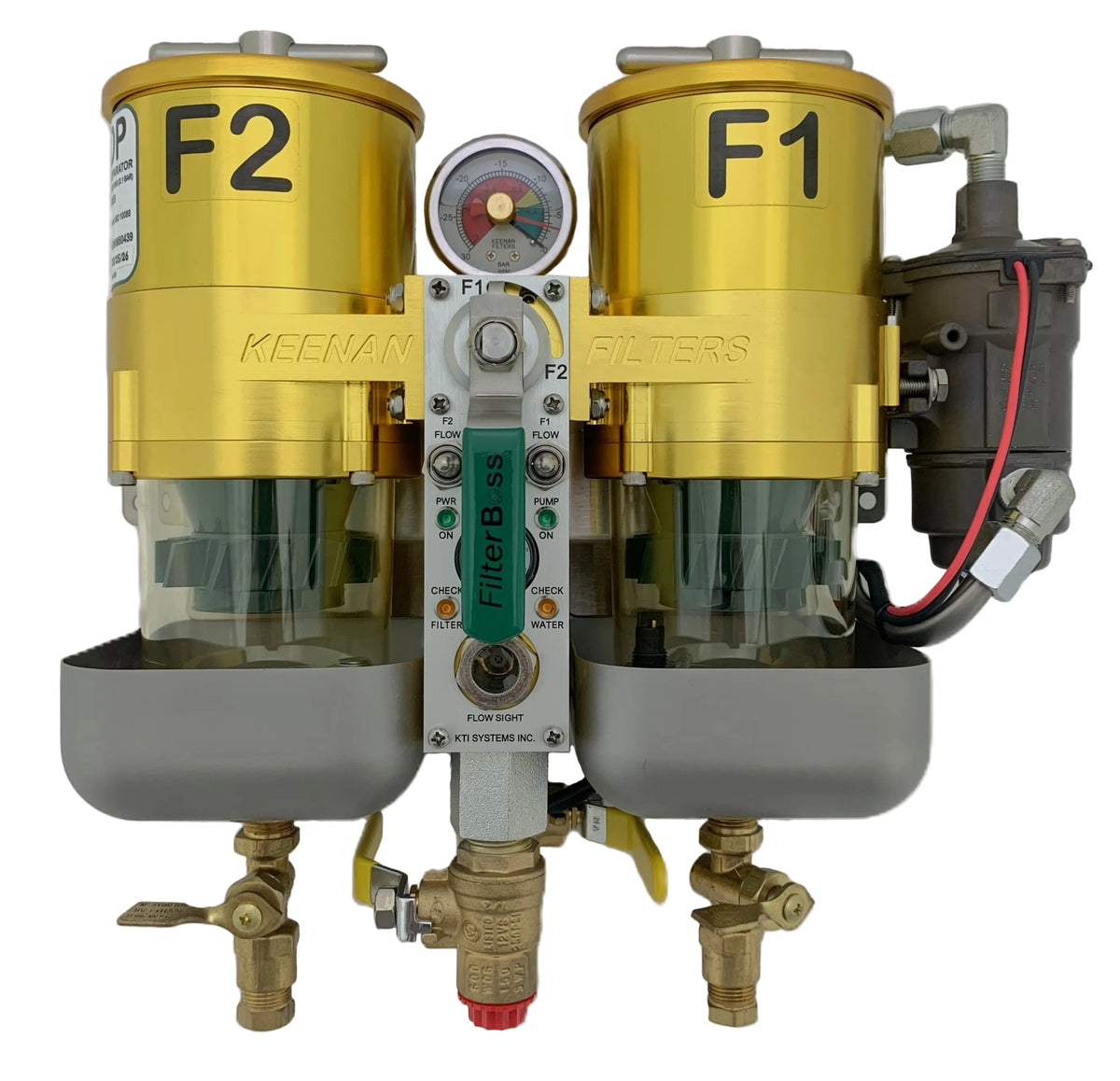

MK60DP Dual Filter Fuel Management System
Advanced Diesel Protection with Fuel Polishing and Redundancy – Made in the USA

The MK60DP is a compact, full-featured dual filter fuel system engineered to protect diesel engines from the leading cause of failure: fuel contamination. Whether your engine runs daily or sits idle for weeks, this system ensures clean, dry fuel from tank to engine—every time.

More than just a filter, the MK60DP performs fuel polishing, removing water, sludge, and particulates before they reach your injectors. Its dual filter design lets you switch filters without shutting down your engine, providing continuous protection and eliminating unplanned maintenance interruptions.

With a remote warning panel, integrated priming and polishing pump, and compatibility with widely available Racor® elements, the MK60DP is a smart and serviceable solution for any small to mid-size marine engine or diesel generator.

Perfect for small to mid-size marine engines, mobile fuel systems, or backup generators requiring maximum reliability and remote monitoring.

GPH (60)
EFS
Command Panel
Pump
Mounting Panel
Single Switch
Dual Switch
Remote Control

Key Features

Key Features

Dual filter system allows for switching without stopping engine operation
Built-in polishing pump for cleaning stored fuel and priming the system
Remote warning panel alerts to clogging or water before engine issues occur
Optional EFS upgrade allows for remote or automatic filter switching

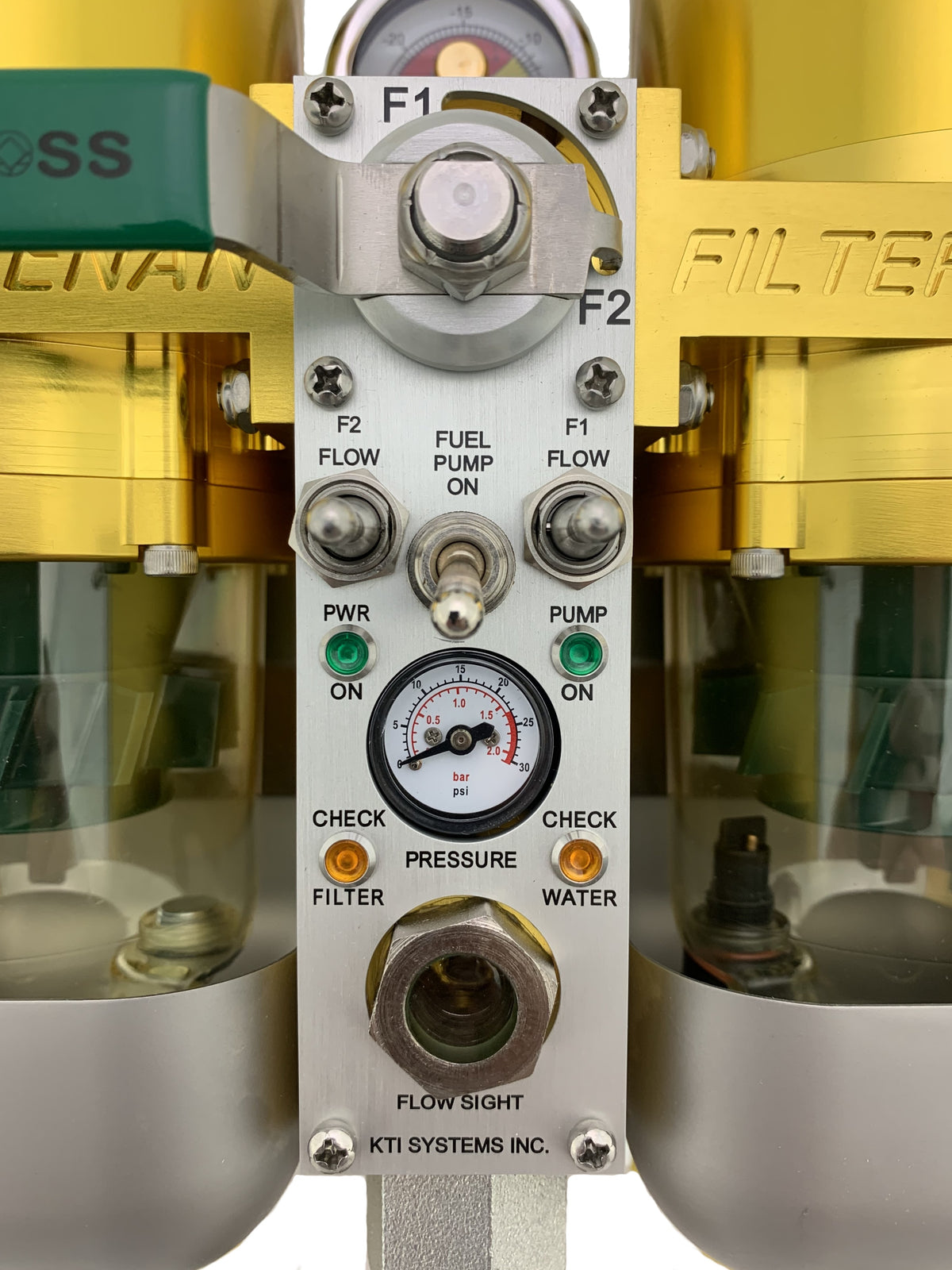

Real-time vacuum monitoring and system test mode to verify system integrity
Backup fuel pressure available in the event of engine lift pump failure
Top-loading design for quick, no-mess filter changes
Compatible with globally available Racor® elements
Precision machined from high-quality aluminum and stainless steel

What's Included

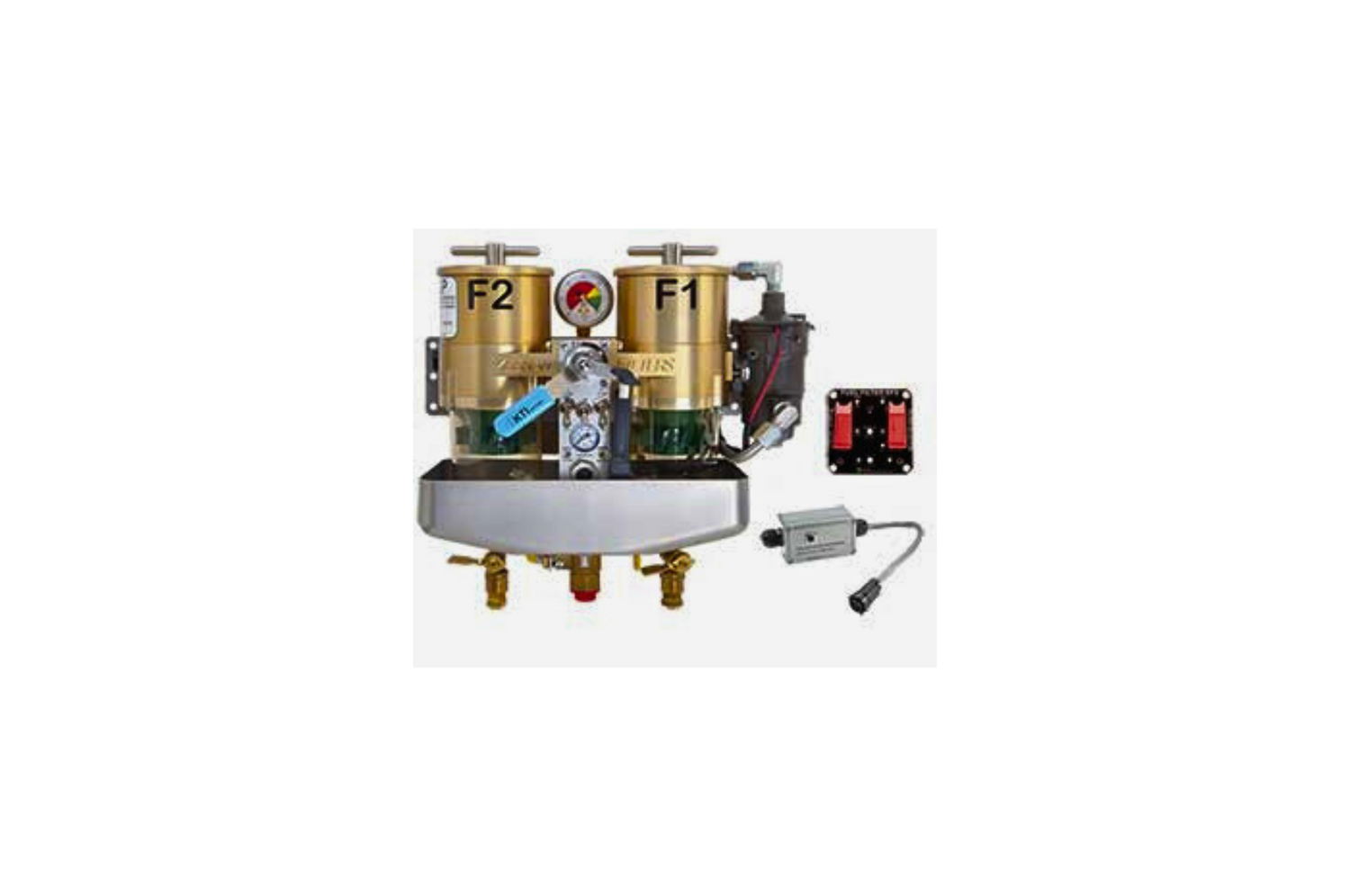

Standard Package Includes

MK60DP Dual Filtration Unit with Integrated Fuel Pump

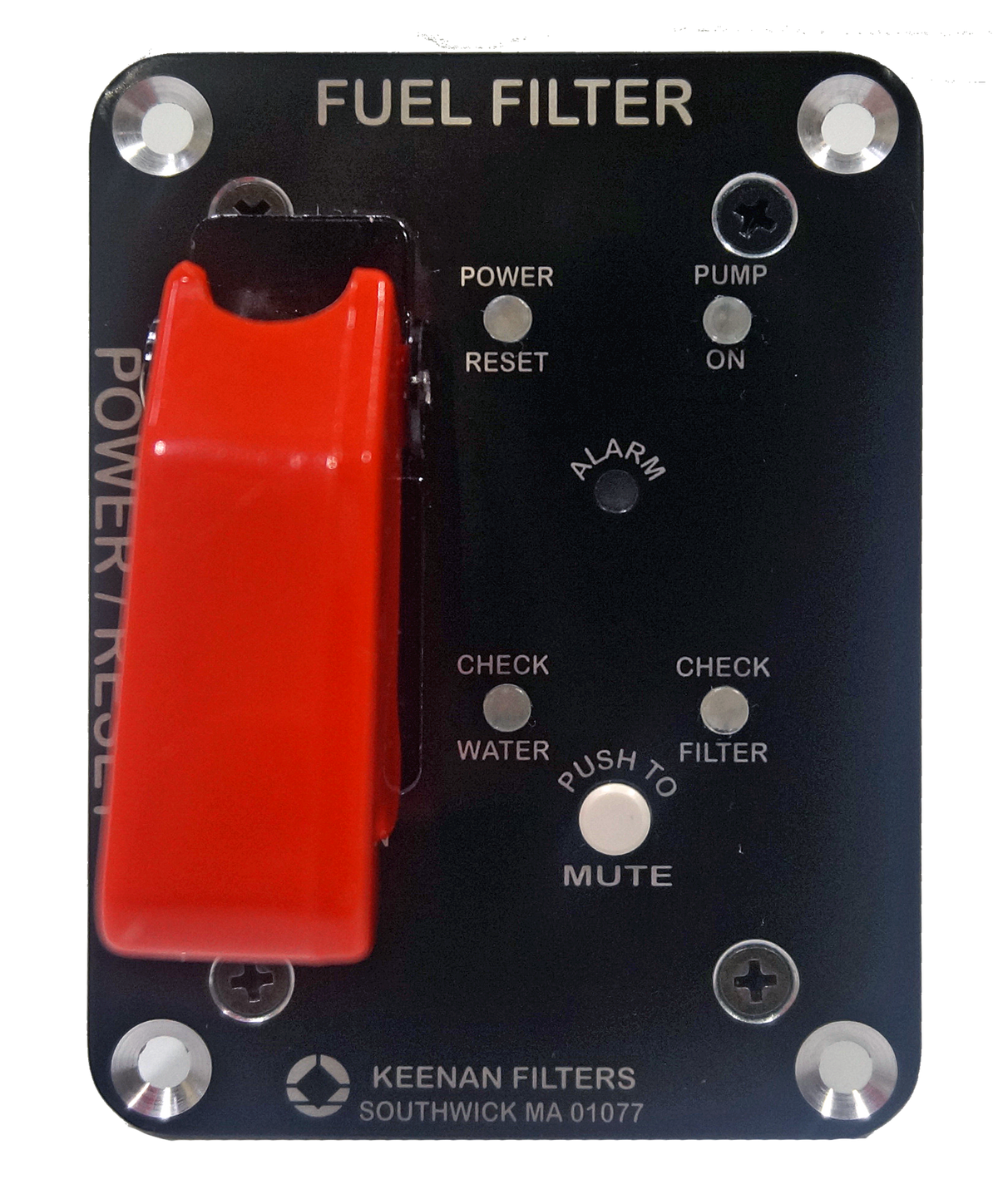

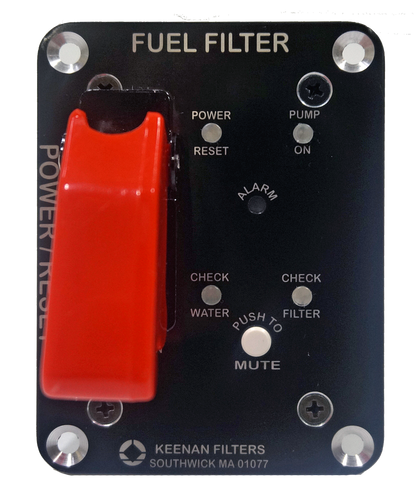

KP600 Remote Warning Panel
K6060 Interface Box and 15 ft Harness
Mounting Panel and ORB to NPT Adapters
Drain Valves and Hardware
Optional: Electric Filter Switch (EFS) System

Technical Specifications

Technical Specifications

Fuel Type: Diesel
Flow Rate: 60 GPH
Voltage: 12 VDC
Current Draw (Pump On): Max 2.3 amps
Circuit Protection: 5 amp
Max Operating Pressure: 30 psi
Design Pressure: 35 psi
Operating Vacuum: 0 to 6 in Hg
Vacuum Alarm: 8 in Hg ± 2 in
Water Removal: 99 percent
Water Alarm Capacity: 5.5 oz
Design Temperature: –40°F to 194°F

Dimensions:

  • Height: 12.83 in
  • Width: 14.64 in (filter), 12.75 in (mount panel)
  • Depth: 7.04 in
    Weight: 19.2 lbs
    Service Clearance: 5 in above, 2 in below
    Inlet/Outlet Ports: 7/8-14 ORB (#10) or 1/2 in NPT adapter

Recommended Filter Elements:

  • 2 micron: 2010SM-OR
  • 10 micron: 2010TM-OR
  • 30 micron: 2010PM-OR
