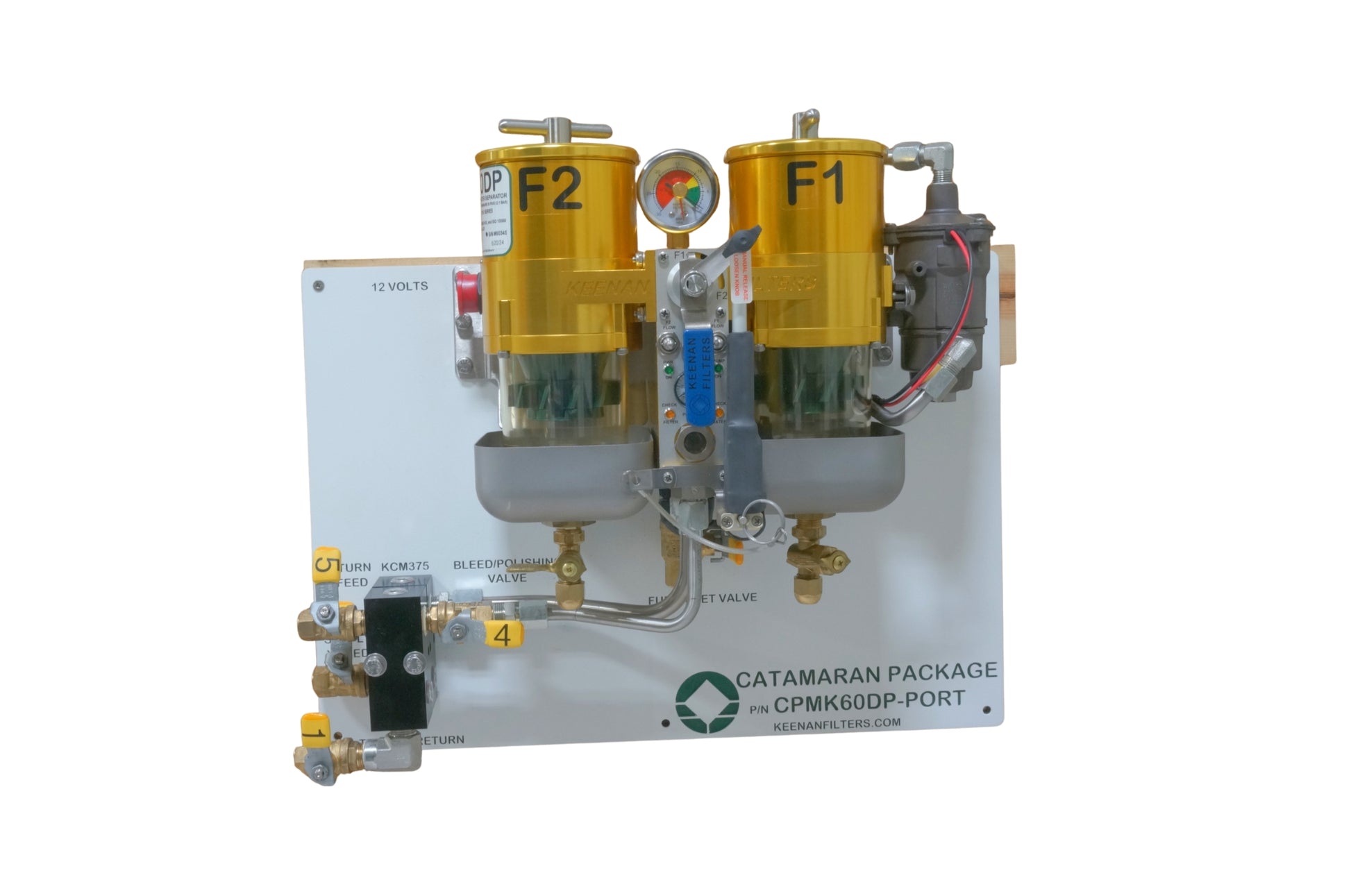

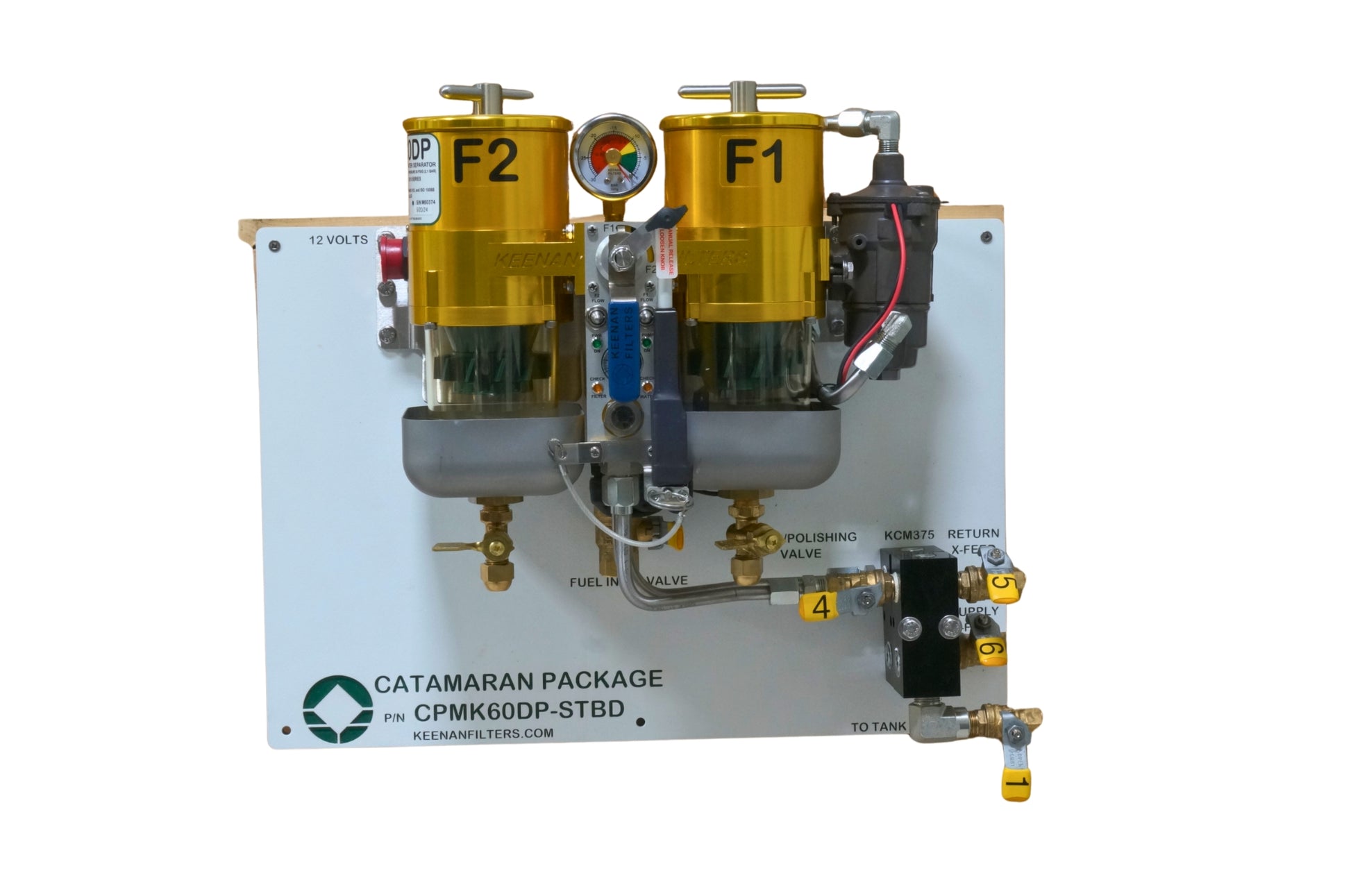

CatBOSS Manual CPMK60 SP EFS – Dual Fuel Management System for Catamarans

Integrated Dual Tank Fuel Filtration and Polishing with Remote Filter Switching (EFS)

Optimize Your Multihull Fuel System for Safety, Redundancy, and Reliability

If your catamaran’s fuel systems are isolated, with each tank feeding only its respective engine, you’re missing out on the safety and efficiency that an integrated system provides. The CPMK60 SP EFS combines two independent MK60DP EFS fuel systems (one per hull) into a single, intelligently connected platform for complete cross hull fuel management and control.

This dual system upgrade enables fuel sharing between tanks, cross engine operation, and seamless redundancy in case of filter clogging or pump failure, all without stopping your engines. Equipped with Electric Filter Switch (EFS) technology, you can swap filters from the helm or allow the system to switch automatically when high vacuum or water is detected.

Why It’s Perfect for Catamarans

Eliminates the risk of fuel starvation from clogged filters or contaminated tanks
Balances fuel loads across hulls with cross tank fuel transfer
Provides redundancy and flexibility during long passages or rough conditions
Enables on the fly maintenance and diagnostics from a centralized helm station
Ideal for multihull cruisers, expedition vessels, and charter operators

GPH (60x2)
EFS
Command Panel
Pump
Mounting Panel
Single Switch
Dual Switch
Remote Control

Key Features

Key Features

Cross hull integration enables shared fuel access and transfer between tanks
Dual MK60DP EFS systems allow each engine to run independently or both engines to run from one tank
Remote KP600 panel with EFS enables manual or automatic filter switching from the safety of the cockpit
Fuel polishing on both sides keeps fuel clean at all times and reduces long term maintenance
Back up fuel pressure supports engine start and operation if a lift pump fails
Filter changes while running thanks to the dual filter setup with top loading Racor elements
System testing verifies fuel flow integrity before departure or after servicing
Premium grade aluminum and stainless steel construction for marine durability
Easy installation using optional KCM375 manifold for clean centralized plumbing

Technical Specifications

MK60DP EFS Technical Specifications (per unit)

Fuel Type: Diesel
Max Flow Rate: 60 GPH
Voltage: 12 VDC
Current Draw: 2.3 amps
Water Removal: 99 percent
Max Operating Pressure: 30 psi
Vacuum Alarm: 8 plus 2 inches Hg
Filter Elements: Racor 2, 10, or 30 micron
Dimensions: 12.83 inches high by 14.64 inches wide by 7.04 inches deep
Weight: 19.2 pounds

Whats Included

Complete System Includes

Two MK60DP EFS Dual Filter Systems, one per engine or hull
Integrated priming and polishing pumps
KP600 Remote Warning and Control Panel
EFS technology for remote or automatic filter switching
Two KH606 Interface Boxes with 15 foot harness cables
Optional: KCM375 Manifold for simplified plumbing and tank connection
